7 inch TFT LCD wide screen IP68 waterproof wireless monitor with 4 video input
Placement:Dashboard
Place of Origin:CN;GUA
Combination:waterproof, touch button,wireless
Certification:CE,FCC,ROHS
Car Make:ALL
Brand Name:Neutral or your brand
Model Number:EV-7013MW
Warranty:1 Years

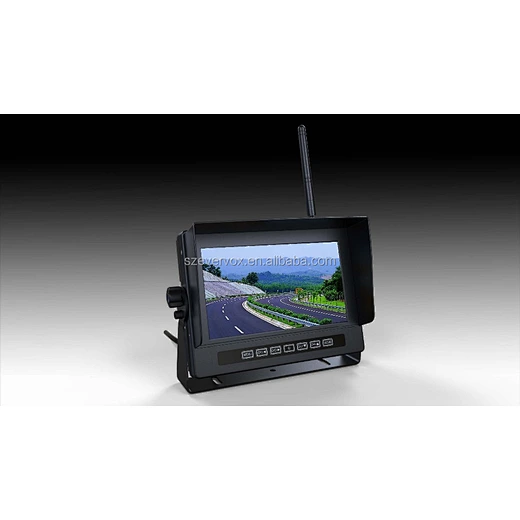

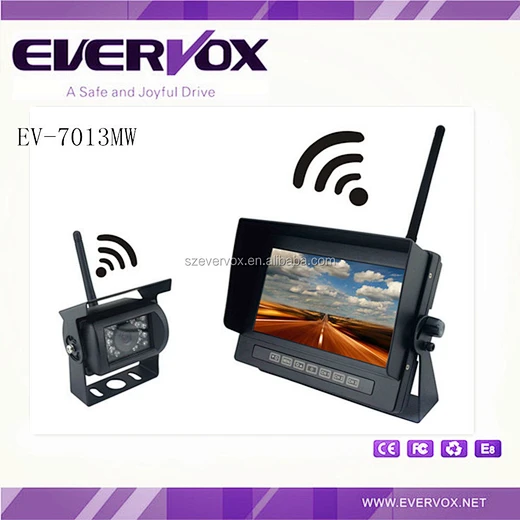

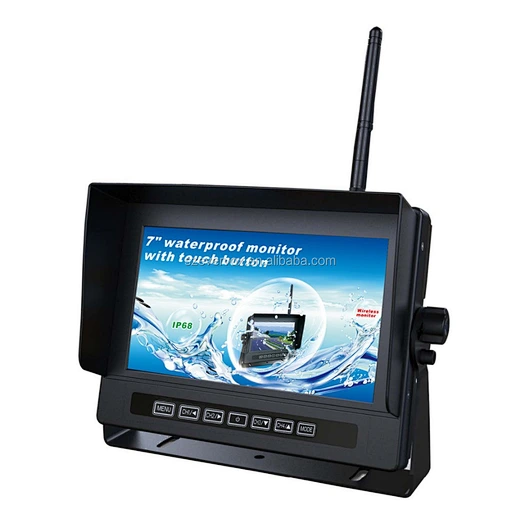

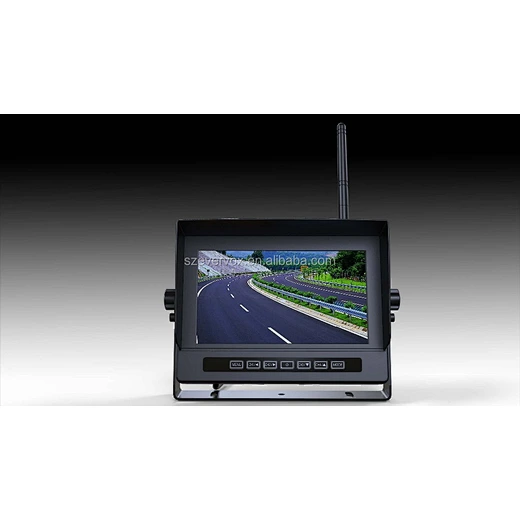

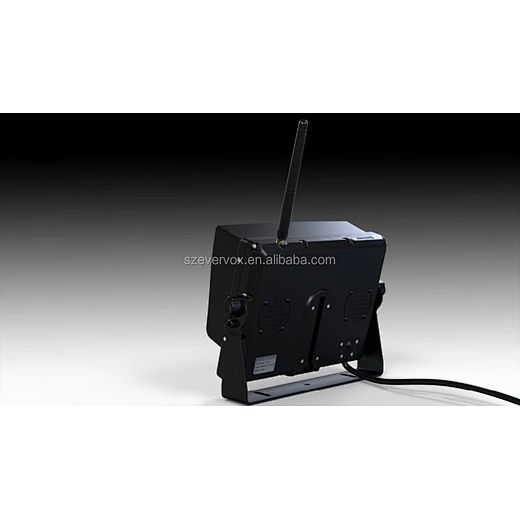

7” Wireless Waterproof In-car Monitor
—EV-7013MW
|
Specifications(For monitor) |
Model number: EV-7013MW |
|
Screen Ratio |
16:9 |
|
Back Light Luminance |
LED, 300cd/m2 |
|
Resolution |
800xRGBx480 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
|
View angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
12V DC (12-24V DC optional) Built-in power source |
|
Power consumption |
5W |
|
Storage temperature |
-30 to 80 degree |
|
Working temperature |
-20to70 degree |
|
Size |
191x140.5x32 mm |
|
Weight |
980g |
|
Key color |
Reaction button, light grey silk screen(8400C) |
|
Shockproof level |
4G |
|
Dustproof/Waterproof level |
IP67/IP68 |
|
2.4G wireless transmitting distance |
2.4G open distance can reach 100M |
|
AV Inputs |
4 way video input(VI/V2 wireless,V3/V4 wire) |
|
Number of Trigger and display |
4 ways trigger |
|
Optional functions |
Built-in speaker, 1-4 wireless waterproof camera |
|
Other features |
Metal shell, no deformation, Built-in 2.4G wireless function, can receive audio/video 4 trigger signal |
|
Accessories |
Remote controller, Power supply cable , User manual, Sunshade and bracket, Camera, 2.4G antenna, 2.4G antenna with 3m extended line, 5.5 DC male head extension cord, Hex wrench |
|
Package |
6pcs/box net weight:12.34KGS gross weight:13.34KGS M: 54*43*27cm |
|

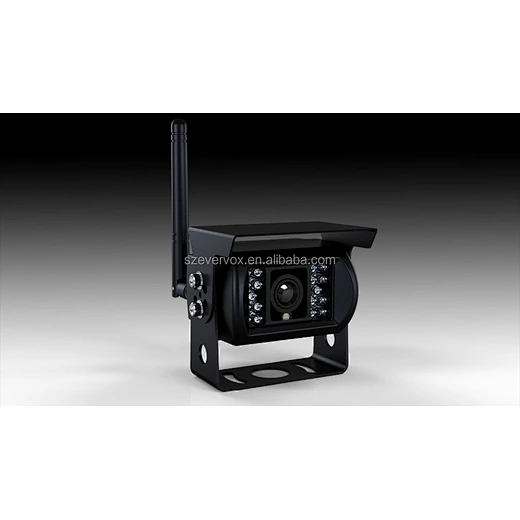

Specifications(For Camera) |
Model number: EV-115TX |
|
Image sensor |
PC 1030 & Sharp 1/4 CCD |
|
Resolution |
420 TV line |
|
Mini illumination |
0.5 Lux, infrared night vision |
|
Image View angle |
120° |
|
System |
PAL& NTSC |
|
2.4G wireless transmitter |
The distance can reach 100M in the open area, Frequency point optional |
|
Power supply |
12V-24V |
|
Waterproof level |
IP 67/68 |
|
Appearance |
Aluminum alloy shell, outside hanging design |
|
Fit for |
Bus and truck and some special vehicles |
|
Other features |
Waterproof, shockproof, infrared night vision, Resistance to high temperature and humidity |
|
Accessories |
0.6m power cable |
