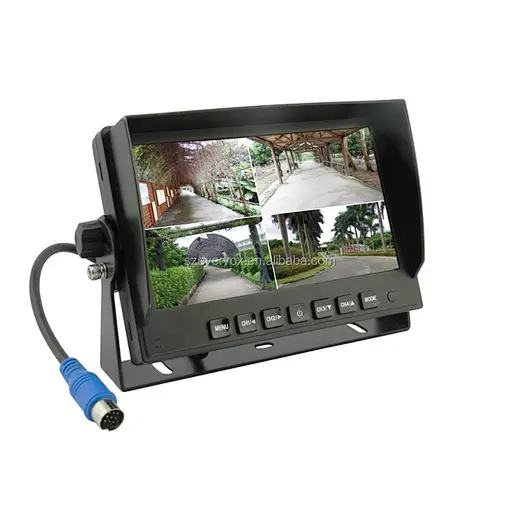

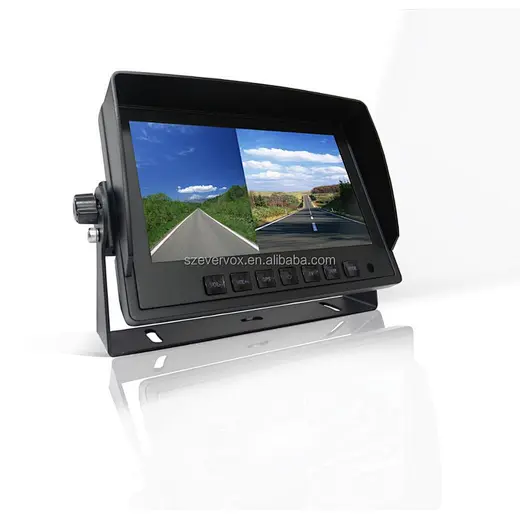

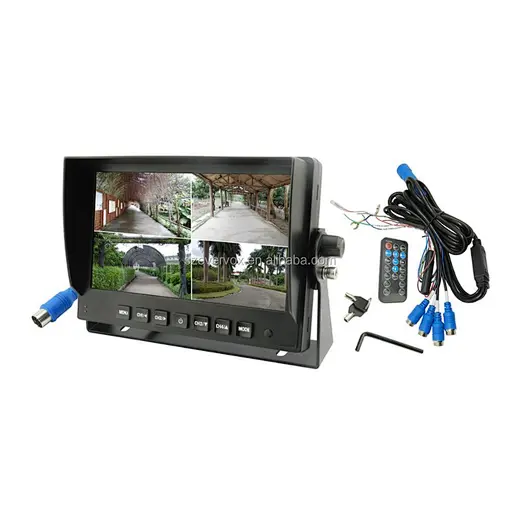

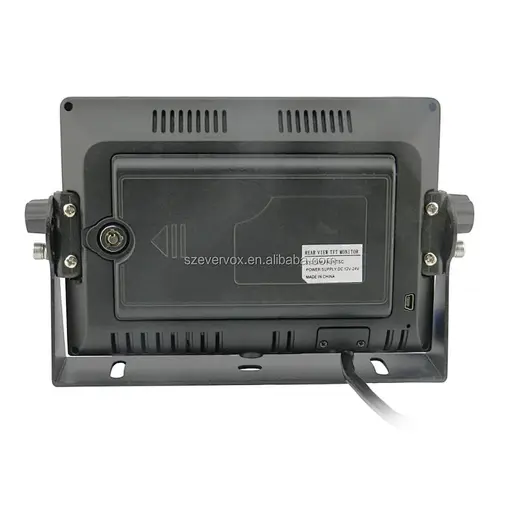

High resolution 4 way car reverse camera system with night vision camera
Products Status:Stock
Response Time:2ms
Brightness:300cd/m
Resolution:1024 x 768
Widescreen:Yes
Panel Type:IPS
Place of Origin:CN;GUA
Screen Size:7"
Brand Name:EVERVOX
Response Time:2ms
Brightness:300cd/m
Resolution:1024 x 768
Widescreen:Yes
Panel Type:IPS
Place of Origin:CN;GUA
Screen Size:7"
Brand Name:EVERVOX
Product Description
| 103 HD Car Camera | |
| Specifications | Model NO.: EV-103HD |
| Image sensor | CP8220 CMOS 1/2.7" |
| Resolution | 1080P 1920 (H)×1080(V) |
| Illumination | 0.1Lux, IR night vision |
| Viewing angle | 3.6MM lens 1/2.7" view angle 85° |
| System | PAL (NTSC optional) |
| Reversing scale | No ruler line (can be set on the main board) |
| Appearance and Application | Aluminium alloy shell, Out hanging design, Used in bus,truck,car,special vehicles |
| Waterproof class | IP67,Aluminium alloy shell |
| Shockproof class | 4G |
| Cable connector | 4-pin or RCA connector |
| Power supply | DC 12V |
| Power consumption | About 1.5W |
| Maximum current | 100 mA |
| Output | 1 channel HD 1080P signal output |
| Working temperature | -30 to 70 ºC |
| Storage temperature | -30 to 85℃ |
| Working Humidity | 85% RH |
