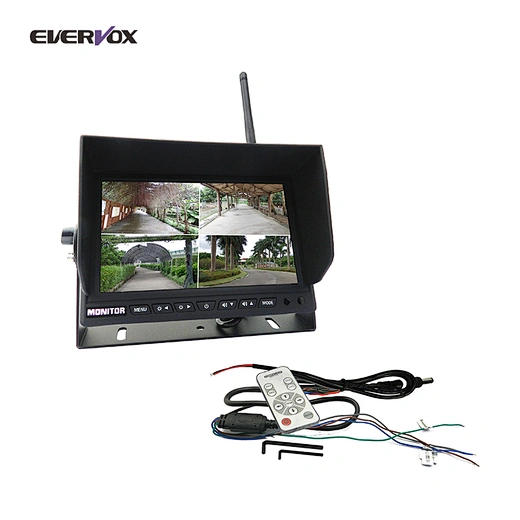

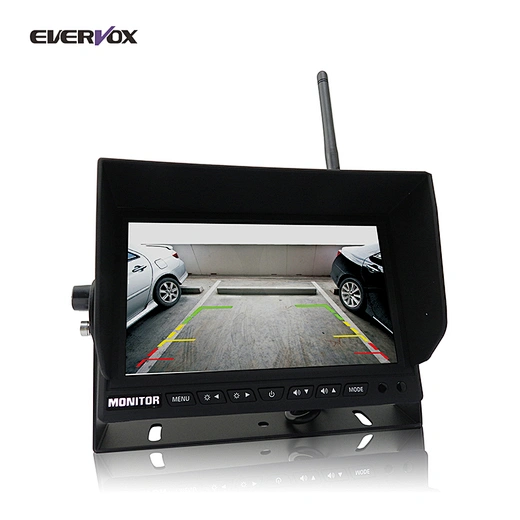

High quality & best price multi camera system with car wireless monitor
Placement:Dashboard
Combination:TV
Place of Origin:CN;GUA
Certification:CE FCC
Car Make:Universal
Brand Name:EVERVOX / OEM
Model Number:EV-7010MQ-WDV
Warranty:1 Years
7 Inch digital panel
Resolution:800*R.G.B*480
4 channel wireless AV input, 1 or 4 image display adjustable,4 triggers
Built in DVR function;MP4 video compression technology,Support external SD card and MMC card recording (Maximally support 32G);
2.4G wilreless digital transimission technology;encrypt signal to protect privacy,100M transimission distance in open area.
built in speaker
power supply: 12V-24V

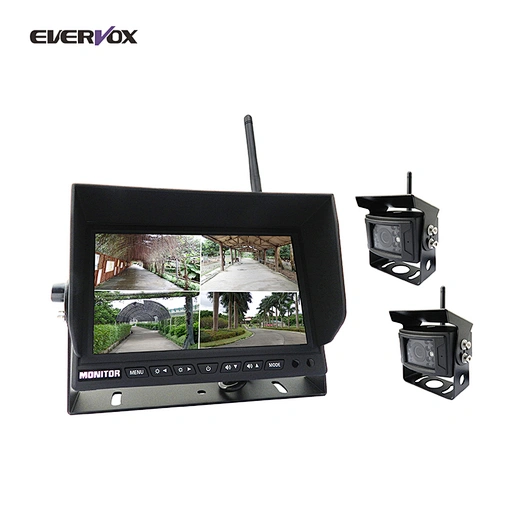

with 4 optional wilreless camera
Connector: 4PIN/RCA/BNC/S-video

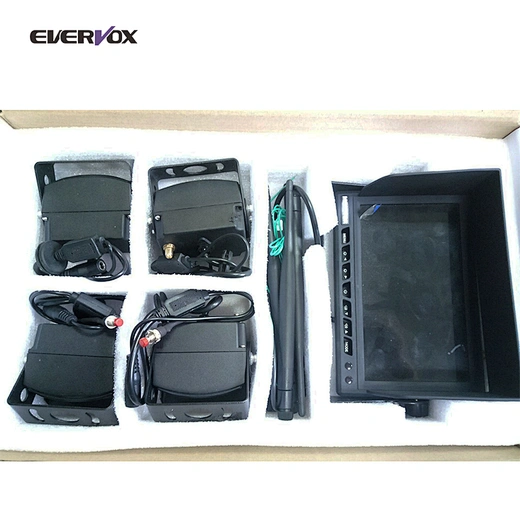

Acccessories: remote control, hex wrench, user manual
power cable,wireless camera, power cable,short antenna(2.4G),extended antenna(3M)
|
Specifications |
Model number: EV-7010MWD |
|
Screen Ratio |
16:9 |
|
Back Light Luminance |
LED, 300cd/m2 |
|
Resolution |
800xRGBx480 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Brightness, Contrast, Saturation, Volume, TCON, Language (English, Simplified Chinese), Reversing delay, Parking Guide Line, Wifi Channel setup |
|
Viewing angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
|
Image reversion |
UP/Down and Left/Right |
|
Power requirement |
DC 12-24V |
|
Power consumption |
5W |
|
Storage temperature |
-30~80 |
|
Working temperature |
-20~70 |
|
Size |
180mm*121mm*24mm |
|
Weight |
630g |
|
Key color
|
Black |
|
AV Inputs |
4 channel wireless AV input, 1 or 4 image display adjustable,4 triggers |
|
Number of Trigger and display |
4 trigger |
|
Transmission distance |
100M in open area |
|
Other features |
OSD menu, Remoter control, Sunshade design around |
|
Accessories |
Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench, 1PC wireless camera |
|
Package |
10PCS/box net weight:13.5KGS gross weight:14.3KGS M: 62.4*46*24cm |
