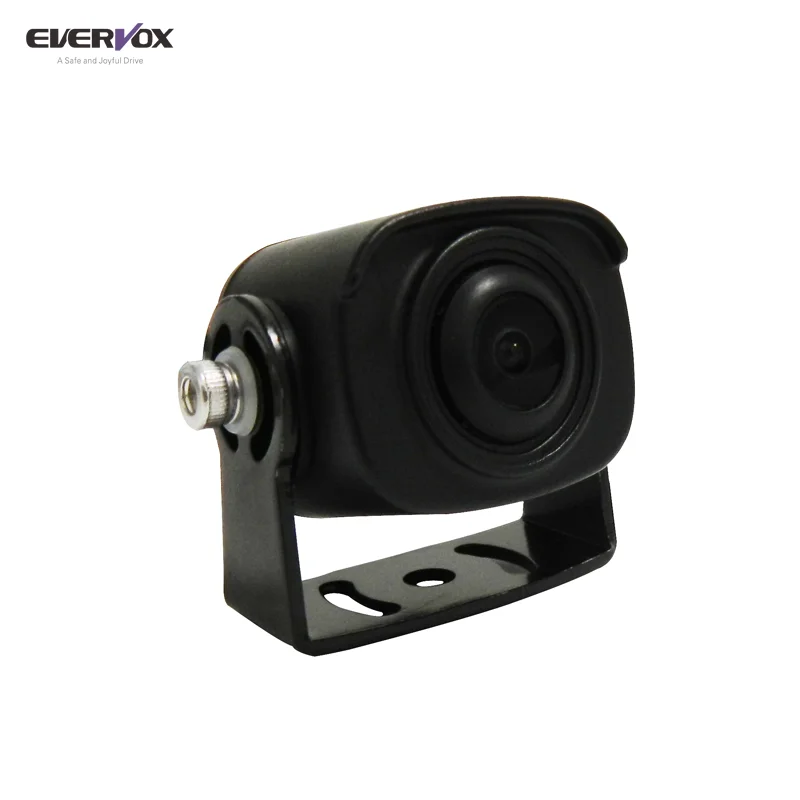

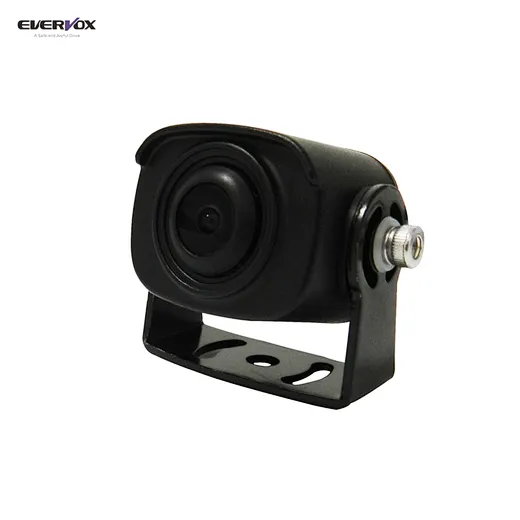

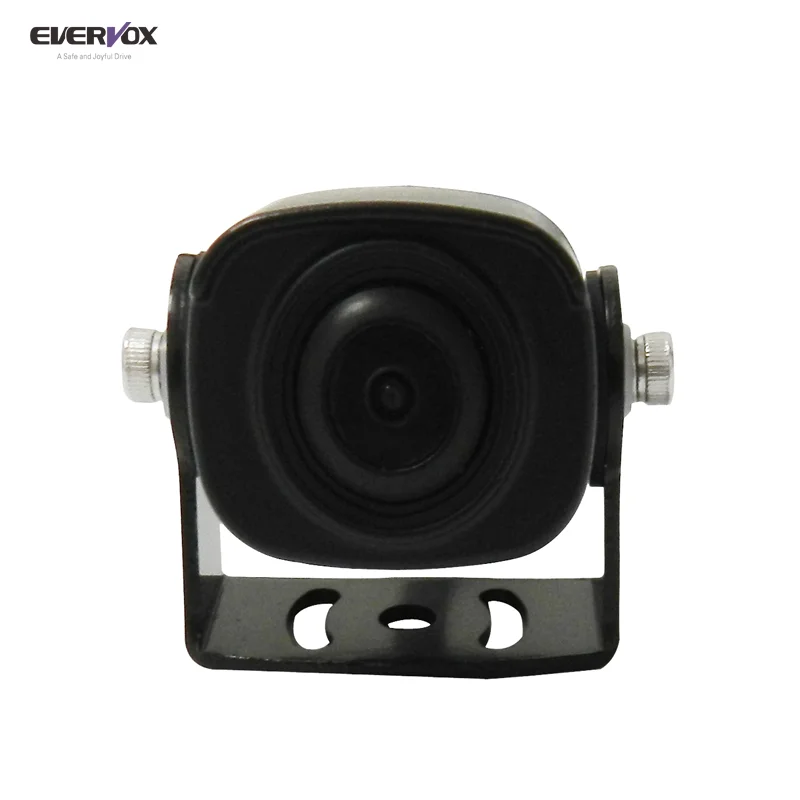

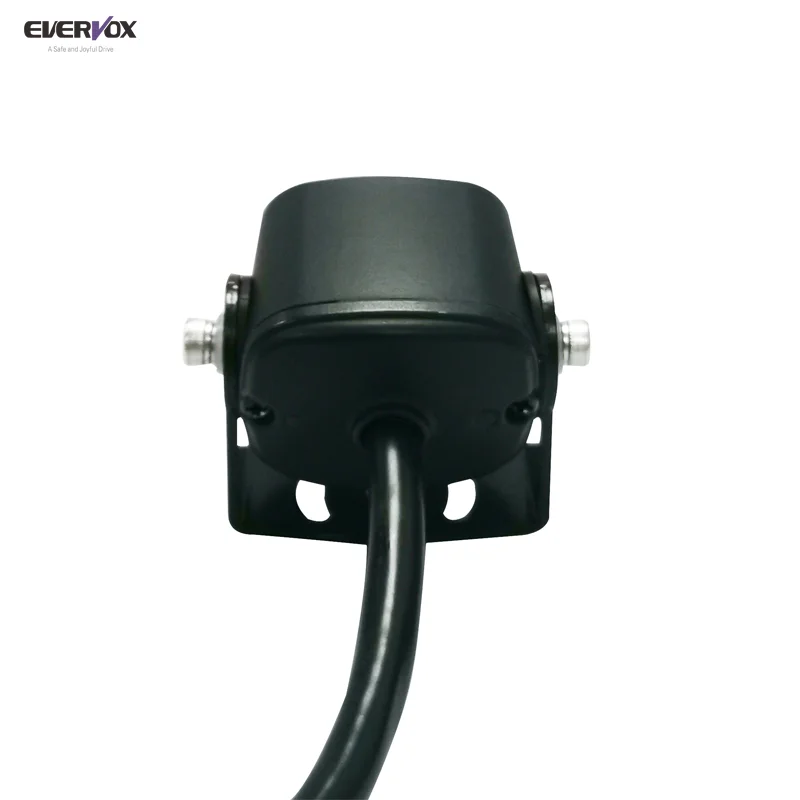

360 bird view ccd camera car system for truck
Type:Reverse Camera
Voltage:DC 12V
Place of Origin:CN
Car Make:truck bus car van
Brand Name:EVERVOX
Model Number:EV-300HD
Warranty:1 Years
Voltage:DC 12V
Place of Origin:CN
Car Make:truck bus car van
Brand Name:EVERVOX
Model Number:EV-300HD
Warranty:1 Years
| High Resolution Mini Night Vision Camera | |
| SPECS | Model No.:EV-300HD |
| Image sensor | CMOS 1233# 1/3 |
| Resolution | 720P/100W |
| Illuminance | 0.1Lux,infrared night vision |
| Viewing angle | 2.1mm waterproof lens 120 degree |
| Image | Mirror as default (Could set mirror&non-mirror switchable) |
| System | PAL system as default (Could set PAL&NTSC switchable) |
| Audio | Without audio as default (With audio optional) |
| Distance grid ( reverse linne) |
Without distance grid (Could set with distance grid or without switchable) |
| Appearance | Aluminium alloy material, out-standing design, suitable for bus, truck and small vehicles |
| Waterproof level | IP68 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC12-24V |
| Power consumption | About 1.5W |
| Maximum current | 130MA |
| Output | 1 channel HD output |
| Working temperature | -20℃ to +70℃ |
| Storage temperature | -30℃ to 85℃ |
| Size | ? |
| Accessories | Extension cable, DC 5.5 male connector extension cable, hexagon screws, bracket, user manual |
