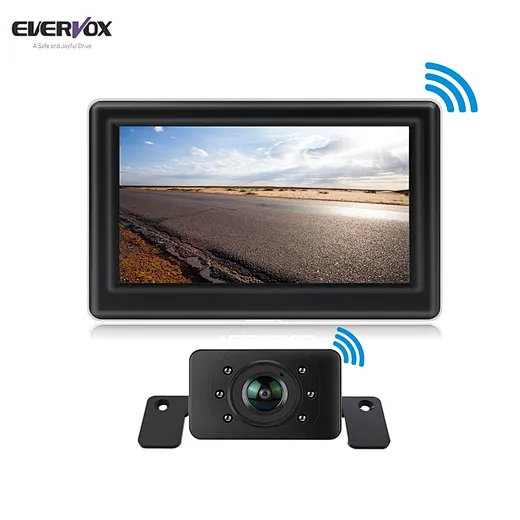

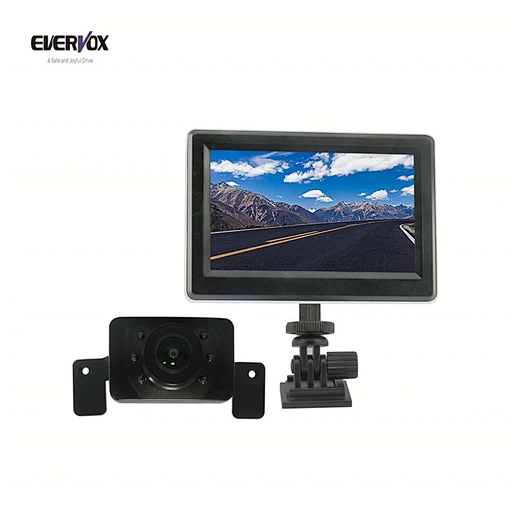

2.4G Rearview digital wireless kit 4.3 inch car monitor with 1 wireless video signal input
4.3” 2.4G Digital Wireless Car Monitor
|
Specifications |
Model number: EV-430W |
|
LCD |
4.3 inch digital panel |
|
16:9 |
|
|
Resolution |
480xRGBx272 |
|
Backlight |
LED, 250cd/m2 |
|
Contrast |
800:1 |
|
Viewing angle |
Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
|
OSD control |
English, Simplified Chinese |
|
Shockproof level |
4G |
|
2.4G transmission distance |
100M in open area |
|
Power supply |
DC12-24V |
|
Power consumption |
<3W |
|
Maximum current |
<110mA DC 12V |
|
Working temperature |
-20 to 70 degree |
|
Storage temperature |
-30 to 80 degree |
|
Size |
117mm*78mm*19mm |
|
Weight |
0.54KGS |
|
AV input |
1 channel 2.4G wireless video signal input |
|
Other features |
Startup automatically once powered on, with parking guide line, Mirror and non-mirror switchable |
|
2.4G frequency point |
2412-2484MHZ |
|
17DBm |
|
|
Receive sensitivity |
-89DBm |
|
Accessories |
Cigarette lighter, USB cable, sticker bracket, suction bracket, user manual |
2.4G Digital Wireless Car Camera
|
Specifications |
Model number: EV-110W |
|
Image sensor |
1/3″CLCC PC1058K |
|
Pixel |
960*576 resolution |
|
Viewing angle |
140 degree |
|
Night vision |
No |
|
Waterproof level |
IP67 |
|
Shockproof level |
4G |
|
2.4G transmission distance |
100M in open area |
|
Power supply |
DC12-24V |
|
Power consumption |
3W |
|
Emission power |
18DBm |
|
Maximum current |
<110mA DC 12V |
|
Working temperature |
-20 to 70 degree |
|
Storage temperature |
-30 to 80 degree |
|
Size |
89mm*37mm*45mm |
|
Weight |
0.35KGS |
