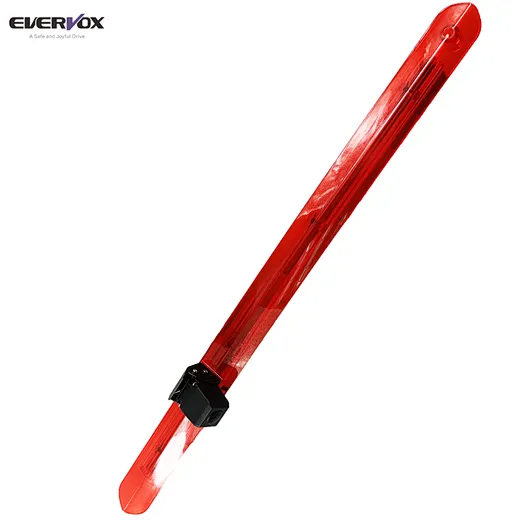

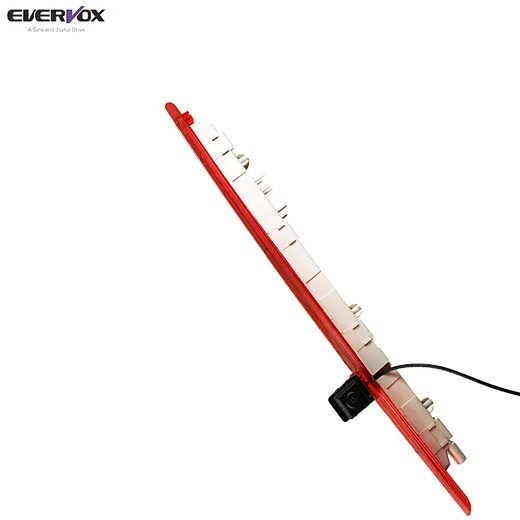

AHD cars brake light reverse camera for New Mercedes Vito 2019
Type:Reverse Camera
Voltage:DC 12V
Place of Origin:CN;GUA
Power:<3W
Car Make:New Mercedes
Brand Name:EVERVOX
Model Number:EV-826CL
Warranty:1 Months
Voltage:DC 12V
Place of Origin:CN;GUA
Power:<3W
Car Make:New Mercedes
Brand Name:EVERVOX
Model Number:EV-826CL
Warranty:1 Months

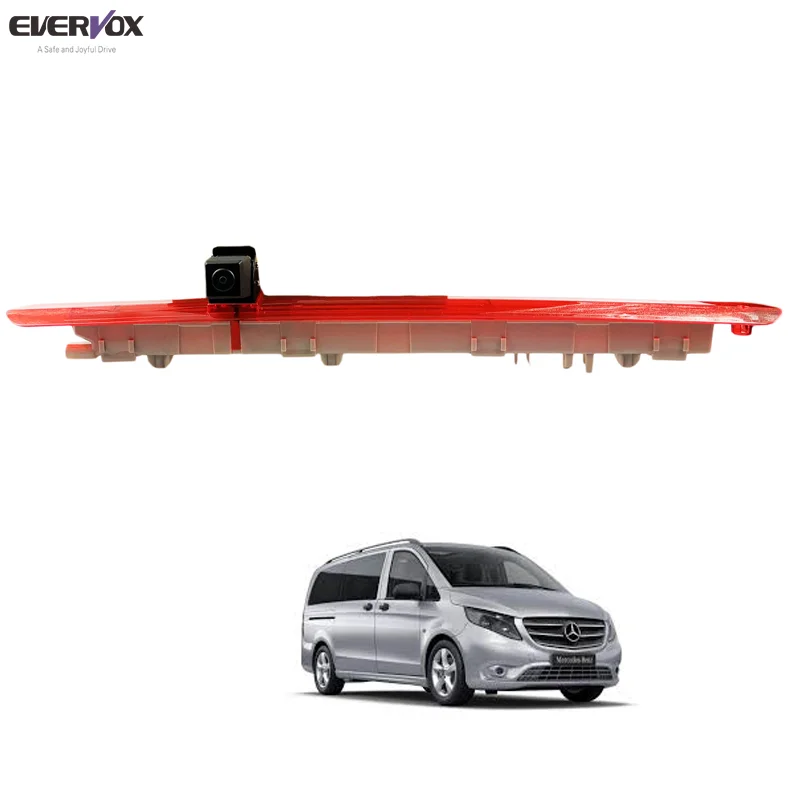

New Mercedes Vito 3rd brake light camera can fit for 2016 model
•IP68 waterproof rating.
•Mirror image,
•N/P System
•4P lock connector/ RCA connector
•12V power input
•-20C° to +70C° operation Temp
| Item No. | EV-826CL |
| Image Type | 1/3'' CMOS/SONY CCD/ SHARP CCD |
| Night Vision distance | 20ft |
| TV System | NTSC/PAL |
| View angle | 170 degree |
| IP Rating | IP68 |
| Vibration Rate | 10G |
| Reverse guide | optional |
| Connector | 4P lock connector/RCA connector |
| Horizontal Resolution | 420TVL/600TVL |
| Power consumption | <3W |
| Min illumination | 0.1Lux (LED ON) |
| Built-in Lens | f: 1.7mm |
| Power Consumption | DC 12V (+/-10%) |
| Audio | without |
| Operation Temperature | -20℃~+70℃.RH95% Max |
| Storage Temperature | -30℃~+80℃.RH95% Max |
| Certificate | FCC,CE, E-mark,ISO9001, RoHS |
| Extension cable | 10M 4P to 4P cable and 10M 4P to RCA, +, - cable for optional |
