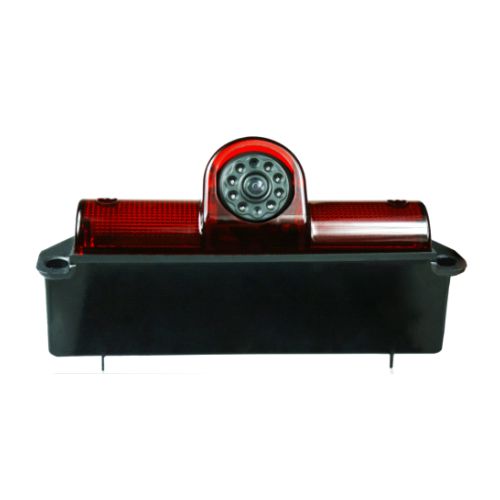

GM Express & Chevy Savana cargo VAN brake light Camera with high-quality, IP68 waterproof rate and approved by CE, Emark, RoHS certificate.
|

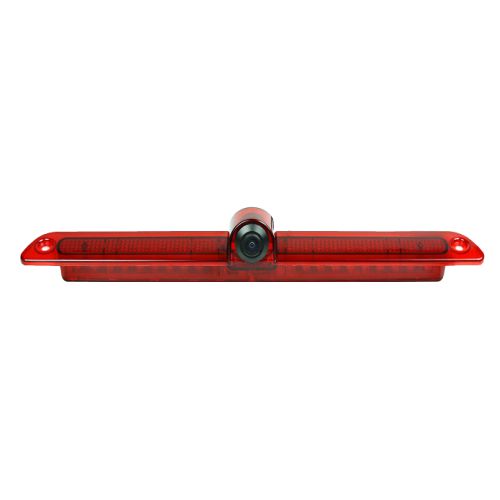

Mercedes Sprinter brake light camera, which can be fitted for 2007-2019 Benz Sprinter model. The Sprinter brake light camera is With IP68 waterproof rate and approved by CE, Emark, RoHS certificate.
| Item No. |
EV-803CL |
| Image Type |
1/3'' CMOS/SONY CCD/ SHARP CCD |
| Night Vision distance |
35ft |
| TV System |
NTSC/PAL |
| View angle |
170 degree |
| IP Rating |
IP68 |
| Vibration Rate |
10G |
| Reverse guide |
optional |
| Connector |
4P lock connector/RCA connector |
| Horizontal Resolution |
420TVL/600TVL |
| Power consumption |
<3W |
| Min illumination |
0.1Lux (LED ON) |
| Built-in Lens |
f: 1.7mm |
| Power Consumption |
DC 12V (+/-10%) |
| Audio |
without |
| Operation Temperature |
-20℃~+70℃.RH95% Max |
| Storage Temperature |
-30℃~+80℃.RH95% Max |
| Certificate |
FCC,CE, E-mark，ISO9001, RoHS |
| Extension cable |
10M 4P to 4P cable and 10M 4P to RCA, +, - cable for optional |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
