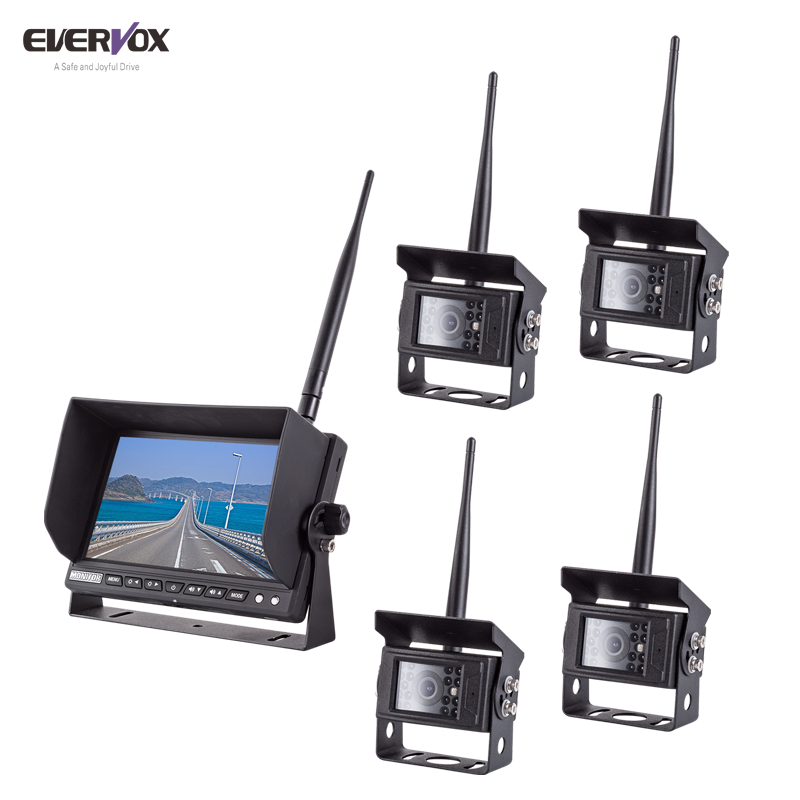

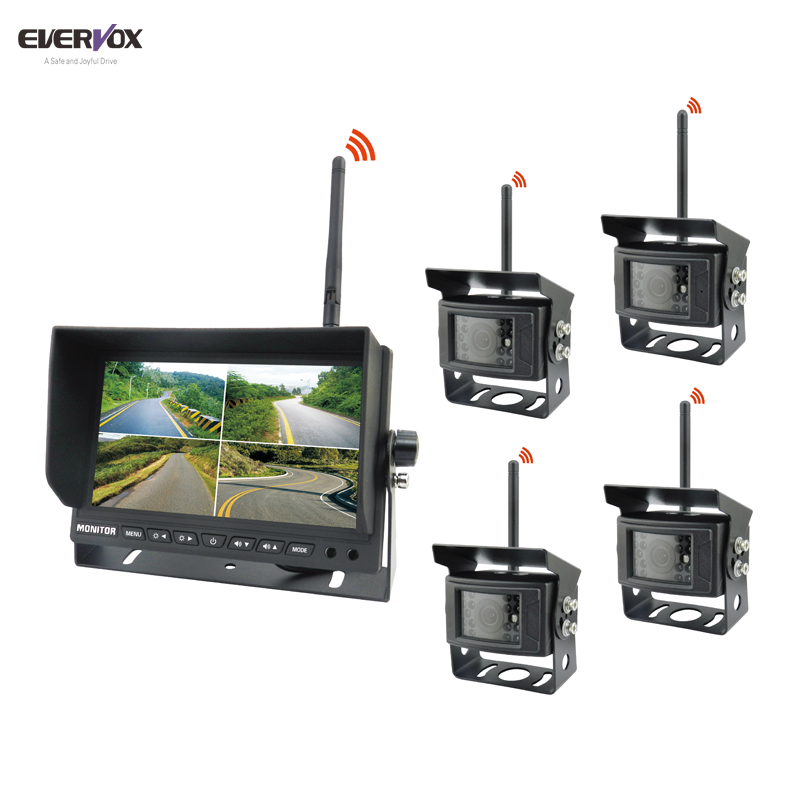

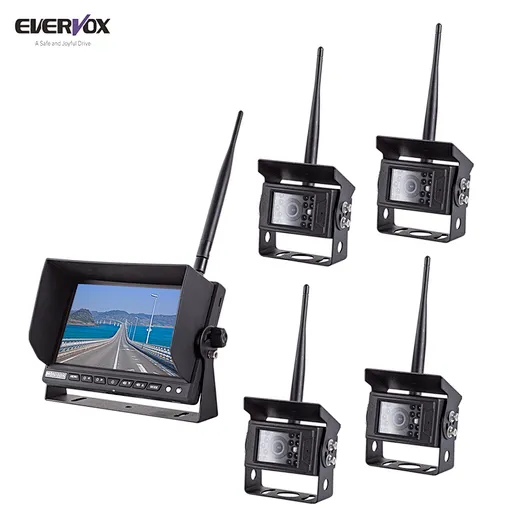

2.4G 9 inch Digital Wireless Quad Monitor Rear View System with DVR
2.4G Digital Wireless Quad Monitor
2.4G Digital Wireless Quad Monitor With RVR Recording,Support 4 channel 2.4 G wireless videos input, support multiple split screen switching with reverse line.
| Model number | EV-9010MQW |
| Resolution | 800*R.G.B*480 |
| Backlight | LED, illuminance 300 cd/m2 |
| Effective pixels | VGA：640X480/D1：720X480 |
| Video frame rate | VGA:30f/s/D1: 25f/s |
| Viewing angle | up—50°，down—70°，left—70°，right—70° |
| Working Tempture | -20~60 ºC |
| Storage temperature | -30~85 ºC |
| Power supply | 9-30V |
| Booting | within 2S |
| Delay | 120mS |
| Current consumption | TYPE:300mA, Max.380mA |
| OSD control | contrast imge setting mirror or non mirror adjustable menu setting Real time recording and video playback |
| Maximum current | ＜5W |
| AV input | Support 4 channel 2.4 G wireless videos input |
| Image display | Support multiple split screen switching |
| Trigger control | 4 channel trigger control with reverse line |
| Imge Recording | Support 128G SD |
| Rotating frequency | 2400 ~ 2483.5MHz * |
| Video frame rate | VGA:30f/s/D1: 25f/s |
| Adjustable method | FSK/GFSK |
| System | PAL/NTSC |
| Transmission bandwidth | 3Mbps |
| Receiving sensitivity | -88dBm@4MHZ |
| Antenna input and output impedance | 50Ω, Typ. |
| Spread spectrum | frequency hopping |
| 2.4G wireless transmitting distance | 150M in open area |
| Shockproof Level | 4G |
| Audio | 4 channel audio input |
| Power line | 5.5 female / paired switch |
| Specifications | Model No.：EV-127ADW |
| Image sensor | 1/4″CMOS OV7725 |
| Effective pixels | 640*480 pixels 0.3 million |
| Viewing angle | 100 degree |
| Night vision visible range | About 3M |
| Audio input | High sensitivity, -36DB microphone |
| Waterproof level | IP68 |
| Shockproof level | 4G |
| 2.4G wireless transmitting distance | 150M in open area |
| Power supply | DC 12-24V |
| Power consumption | ＜5W |
| Maximum current | ＜250mA |
| Working temperature | -20℃ to 70℃ |
