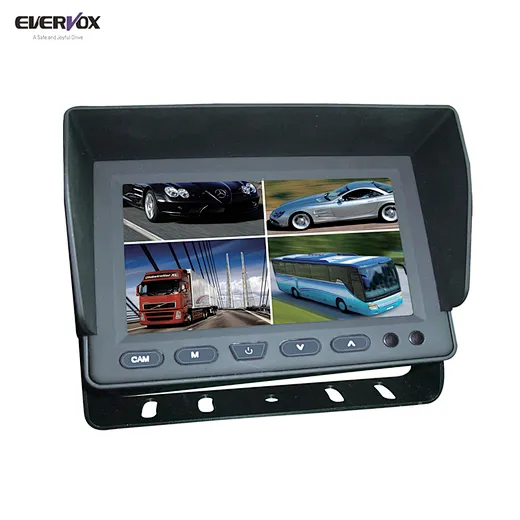

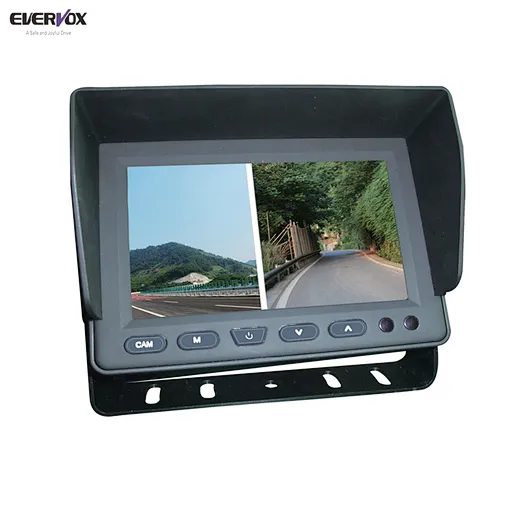

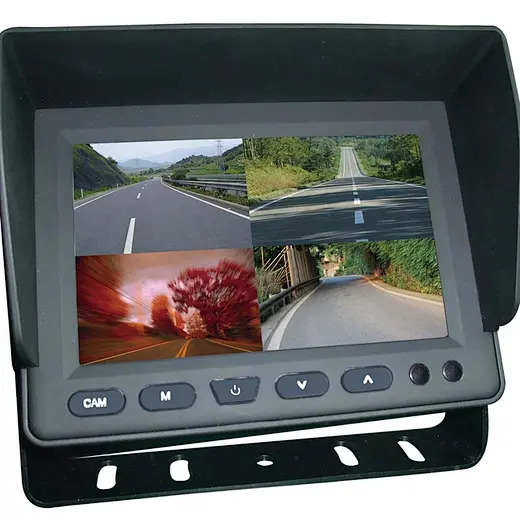

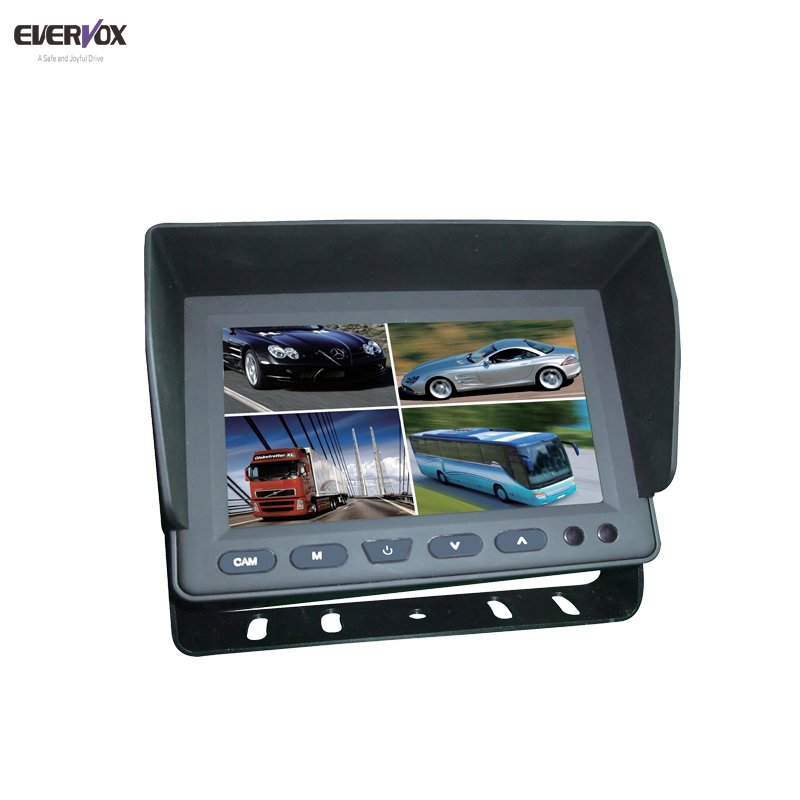

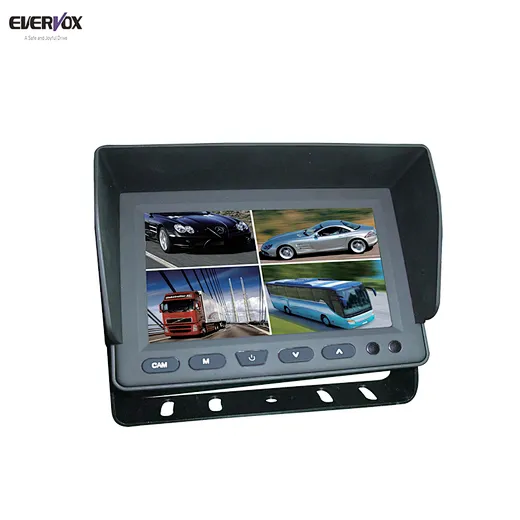

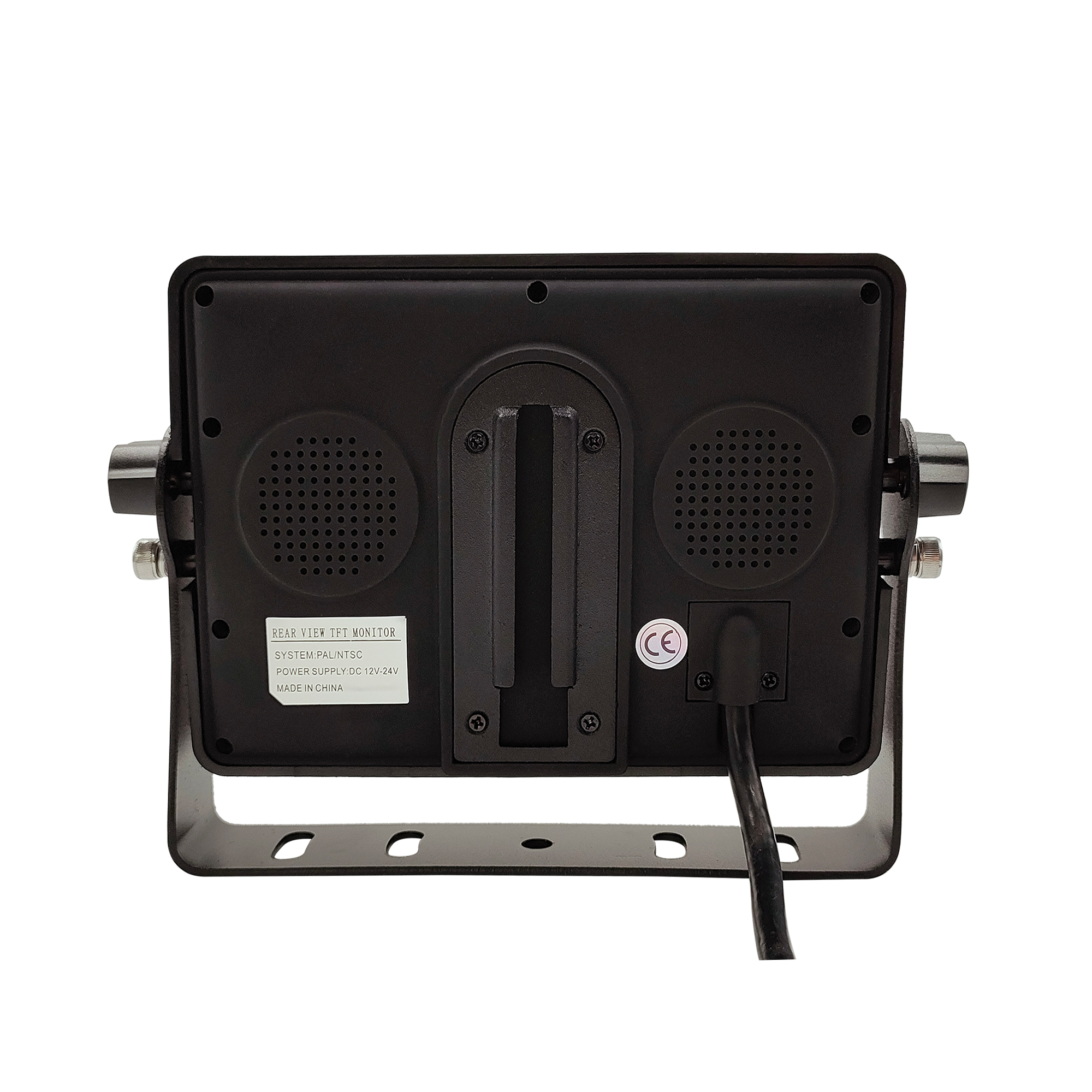

5 inches 800*480 tft lcd color monitor 12-14 volt with AV-IN

Specifications

Model number: EV-5588MQ

Screen Ratio

16:9

Back Light Luminance

LED, 200cd/m2

Resolution

800xRGBx480

Compatible system

NTSC & PAL (automatically)

OSD control

Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angle

Hor. L(70) R(70) Ver. UP(50) DOWN(70)

Image reversion

UP/Down and Left/Right

Power requirement

12V DC (12-24V DC optional)

Power consumption

5W

Storage temperature

-30 to 80℃

Working temperature

-20℃ to 70℃

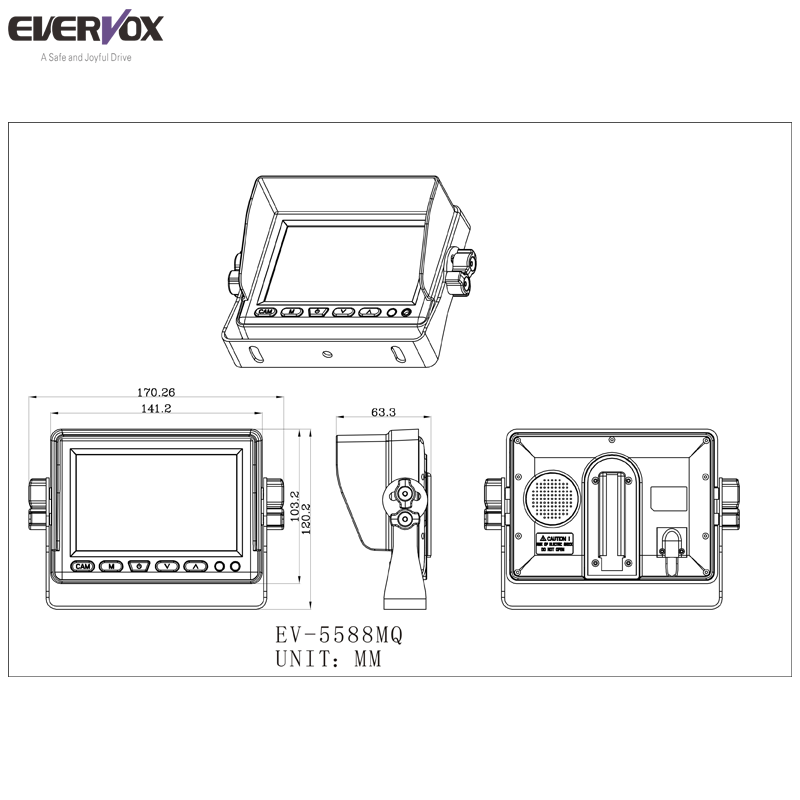

Size

141x103x25 mm

Weight

425g

Key color

Black rubber oil, radium carving, through blue light

AV Inputs

4 way video input,1 way audio input

Number of Trigger and display

4 triggers

Optional functions

4 PIN connector, Built-in speaker, U shape bracket(Optional for butterfly style), With sunshade around

Other features

Full image/2 images/4 images adjustable, Reversing picture can be delayed, When 4 images displayed, able to set the mirror or original image of each image indivually

Accessories

Remote controller, Power supply cable , User manual, Bracket

Package

10pcs/box net weight:5KGS gross weight:5.8KGS M: 51.5*34.8*18cm
