Quad AHD 9V-36V wireless security cctv camera monitor system

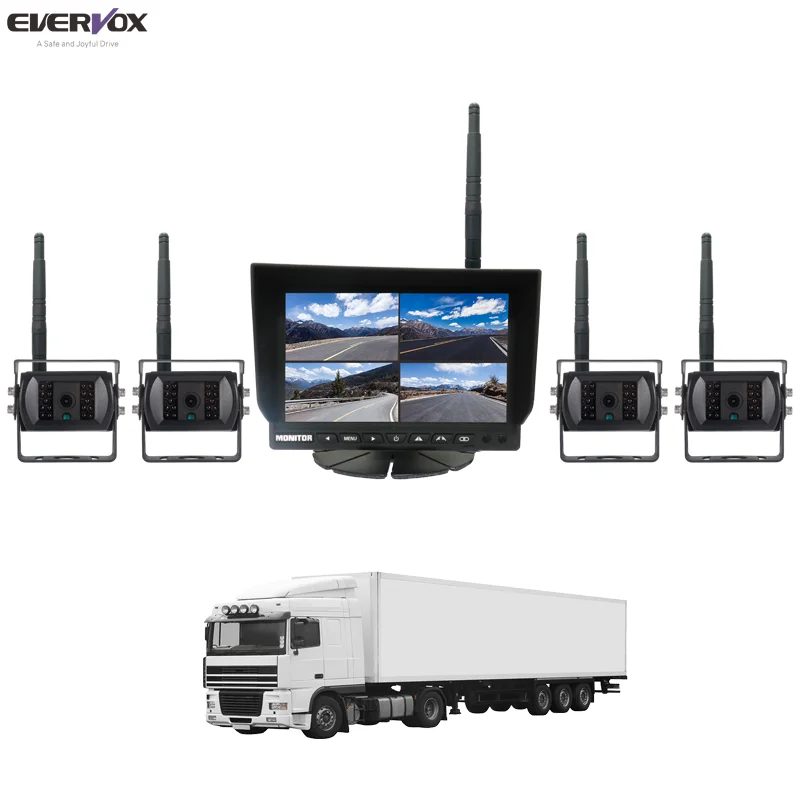

7"1080 AHD Quad Wireless Rear View System
| 7″ 2.4G Digital Wireless Car Monitor | |
| Specifications | Model No.: EV-7010MWHD |
| Screen ratio | 16:9 IPS panel |
| Resolution | 1024*R.G.B*600 |
| Backlight | LED, 500 cd/m2 |
| Viewing angle | Hor. L(85) R(85) Ver. UP(85) DOWN(85) |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+85 ºC 95%RH MAX |
| Power supply | DC 12-24V |
| loudspeaker | Without(customized) |
| Delay time | 120mS |
| Electric current | Standby: ≤10mA, Working≤110mA |
| Power consumption | <3W |
| AV input | 4 channel HD wireless video signal input |
| Operating frequency range | 2400 ~ 2483.5MHz * |
| System | PAL/NTSC automatically |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission distance | 200m in open area |
| Shockproof level | 4G |
| Power cable | waterproof 2P BM connector |
| Weight | 0.54KG |
| Size | 180mm*121mm*24mm |

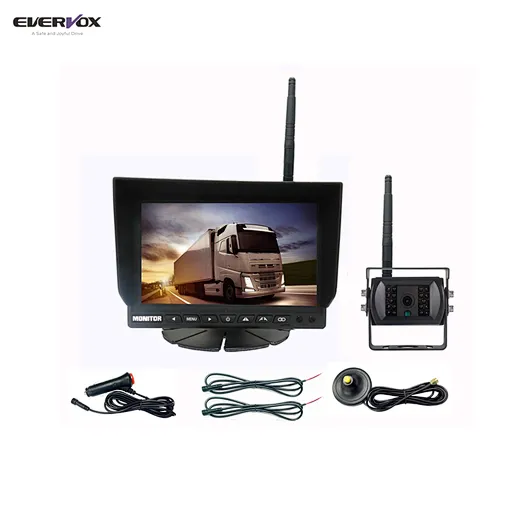

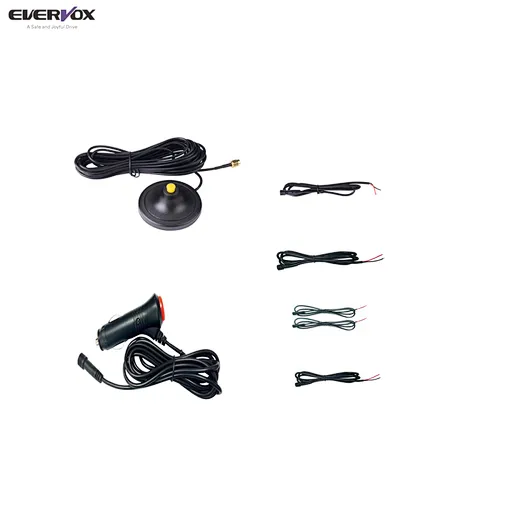

| Accessories | Power cord,Fan shaped bracket,User manual,2.4G 5DB antenna,5m extension antenna,Car charger(optional),suction cup bracket(optional) |
