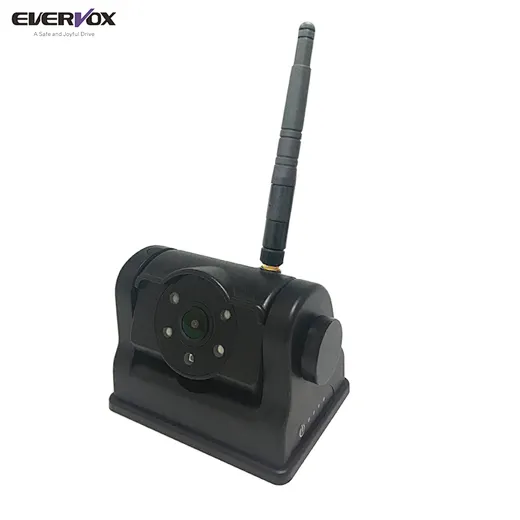

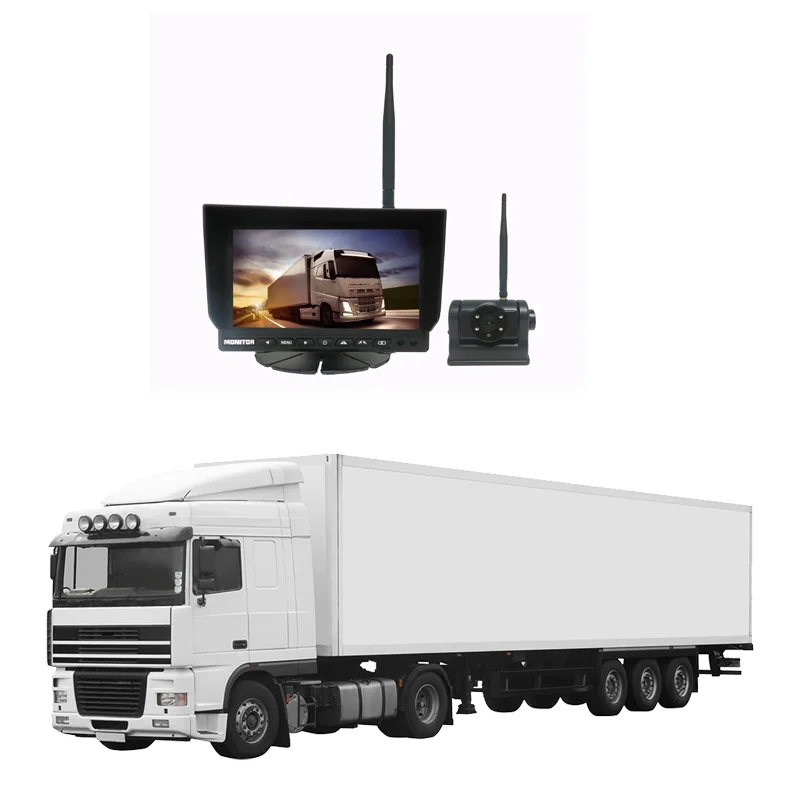

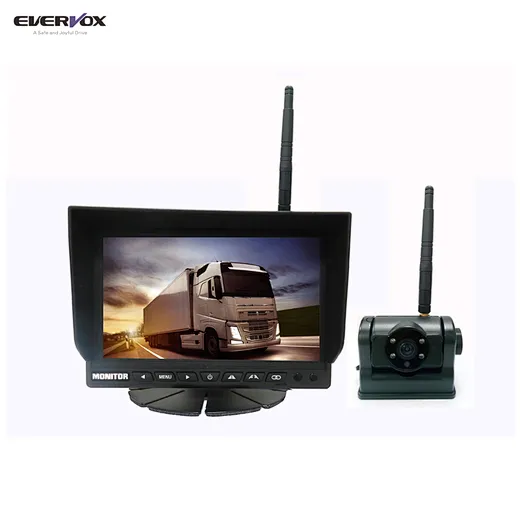

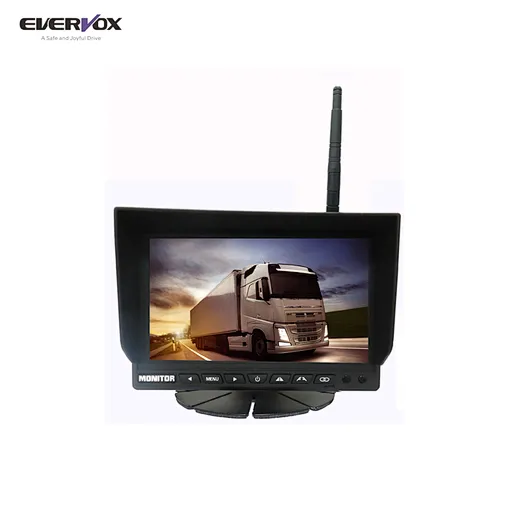

Wireless 1080p reverse parking camera with built-in battery and monitor display
WIRELESS Backup Camera System (Built-in Battery)
| Specifications | Model No.: EV-7010MWHD+EV-111D |
| Resolution | 720P 1280*720 pixels/1080P 1960*1080 pixels(optional) |
| Image Sensor | CMOS 1/2.7" |
| Viewing Angle | 140 degree |
| 2.4G Transmission Distance | 200M in open area |
| System | N/P Automatically |
| Spread Spectrum | FHSS(Adaptive frequency hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Battery Capacity | 6400mA |
| Battery Indicator | support,4 LED lights |
| Battery Charging Time | DC5.5,5~24Volts,6hours |
| Working Time with Fully Charged | 18 hours(under continuous working conditions) |
| Standby Time with Fully Charged | 580 hours(on power saving mode) |
| Camera Adjustable Angle | 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode | Long press to ON/OFF, short press to show battery status |
| Installation Mode | Magnet base adsorption installation |
| Night Vision | Infrared HD night vision |
| SNR | 46.5dB |
| Audio | without(customized) |
| Waterproof level | IP67 |
| Transmitting sensitivity | -89 dBm |
| Material | Black aluminium alloy |
| Shockproof Level | 4G |
| Power supply | DC5-24V |
| Operation Temperature | –20℃ ~ 70℃, RH95%MAX |
| Storage Temperature | –30℃ ~ 85℃, RH95%MAX |
| Dimensions | 74*45.5*56.5mm |
| Attachments | DC5.5 male power cable,5DB antenna |
