10.1 monitor 2AV input special for bus/truck/van/lorry
10.1 Inch Stand Alone Monitor
|
Specifications |
Model number: EV-1010M |
|
Screen Ratio |
16:9 |
|
Back Light luminance |
250--300cd/m2 |
|
Resolution |
1024xRGBx600 |
|
Compatible system |
NTSC & PAL (automatically) |
|
OSD control |
Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese) |
|
View angel |
Hor. L(60) R(60) Ver. UP(40) DOWN(60) |
|
Image reversion |
UP/Down |
|
Power requirement |
DC12-24V |
|
Power consumption |
5W |
|
Storage temperature |
-30 to 80 degree |
|
Working temperature |
-20 to 70 degree |
|
Size |
285x183x74 mm |
|
Weight |
900g |
|
Key color |
Black |
|
AV Inputs |
2AV input |
|
Number of Trigger and display |
1 trigger |
|
Optional functions |
4PIN connector optional |
|
Other features |
Built-in speaker, Remoter control, OSD menu, |
|

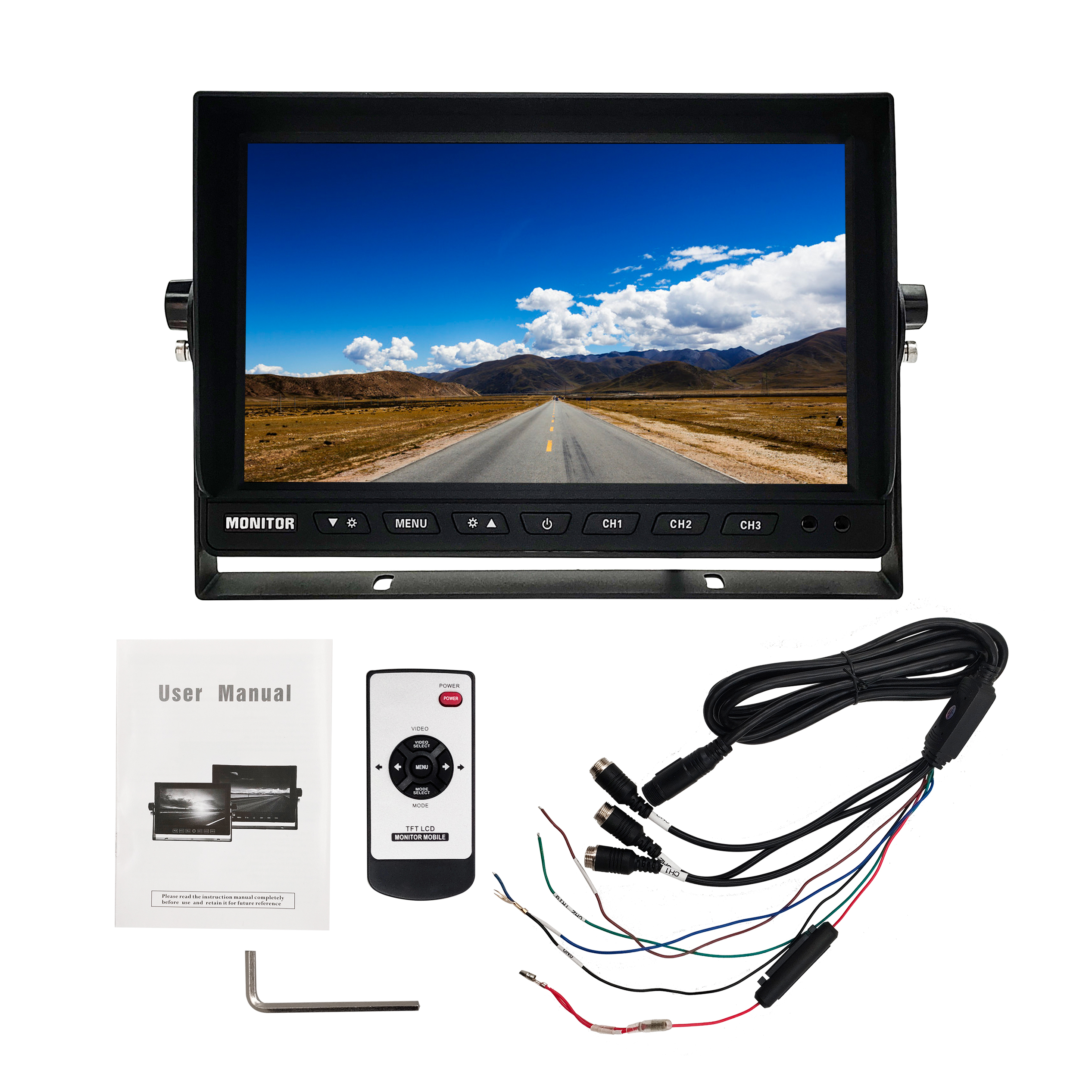

Accessories |
Remote controller, Power supply cable , user manual, headrest frame |
|
Package |
10PCS/CTN NW: 15.08KGS GW: 15.88KGS M: 58.2*45.8*34CM |
