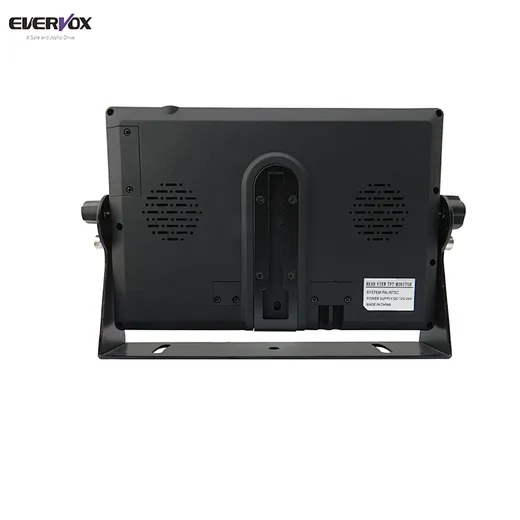

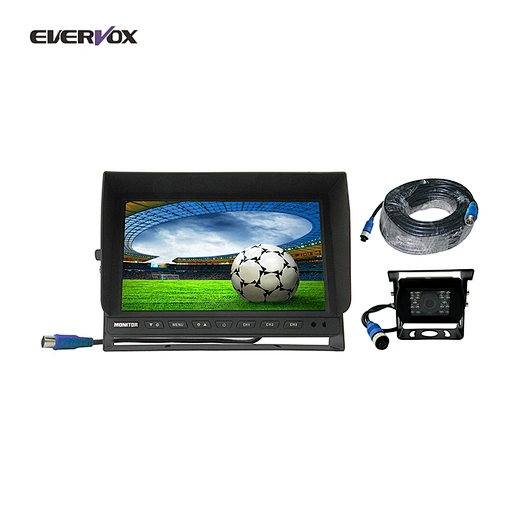

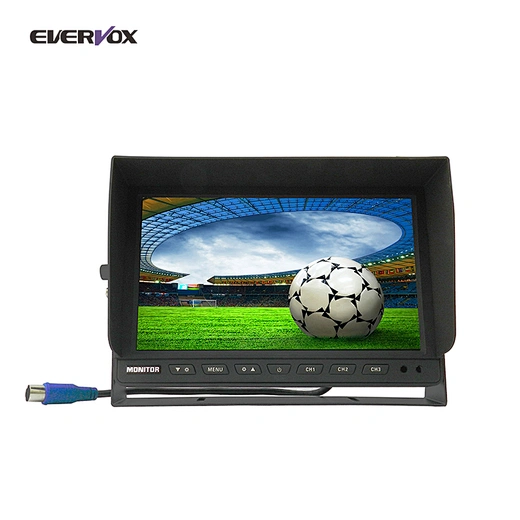

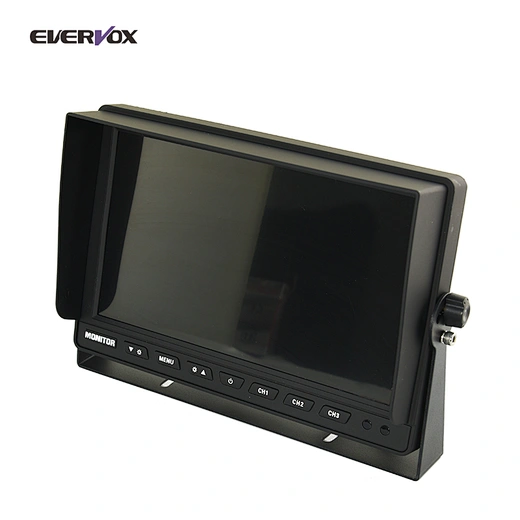

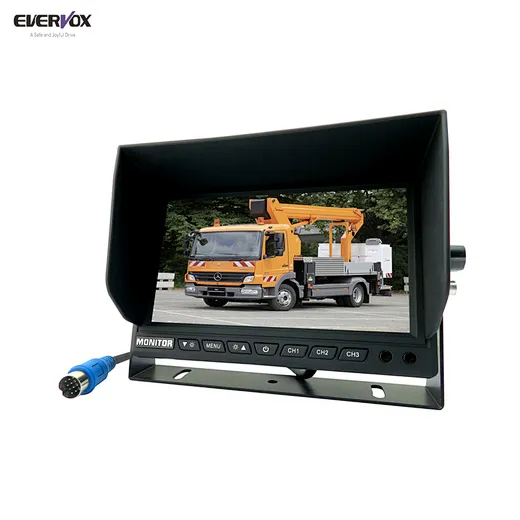

10.1 inch 200W resolution AHD car monitor+AHD cameras+20M AHD extension cable

Specifications

Model number: EV-1010M-AHD

Screen Ratio

16 : 9

Back Light Luminance

LED, 300cd/M2

Resolution

1024xRGBx600

Compatible system

NTSC & PAL (automatically)

OSD control

Brightness, Contrast, Saturation, Volume, Language

(English, Simplify Chinese)

View angle

Hor. L(70) R(70) Ver. UP(50) DOWN(70)

Image reversion

UP/Down and Left/Right

Power requirement

DC 12-24V

Power consumption

5W

Storage temperature

-30 to 80 degree

Working temperature

-20 to 70 degree

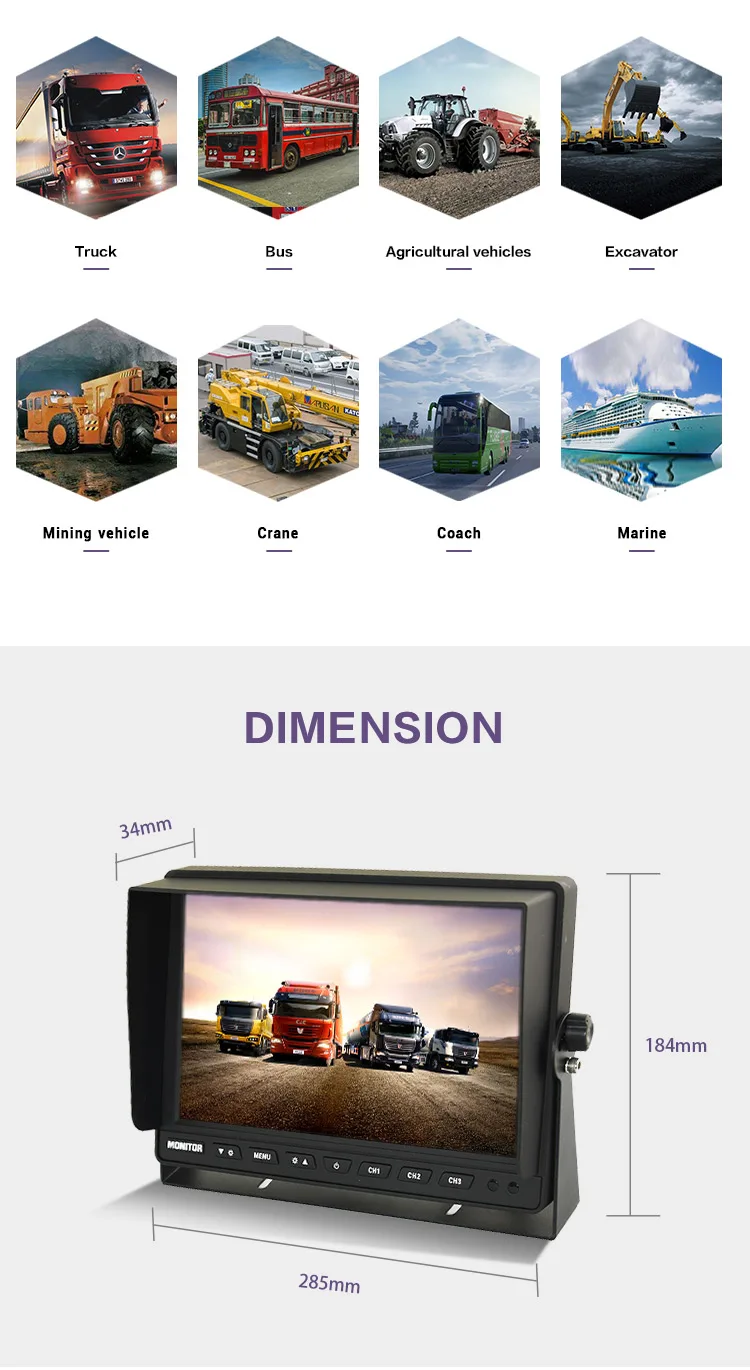

Size

Weight

About 680g

Key color

Black

AV Inputs

3 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30

Number of Trigger and display

3 triggers

Optional functions

4 PIN connector or RCA connector

Other features

OSD menu, Remoter control, Sunshade design around

Accessories

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench

Package

10pcs/box net weight: 15.08KGS gross weight:15.88KGS M: 62.4*46*24cm

SPEC

Model No:EV-103HD

Image sensor

NVP2441+IMX323 SONY CMOS

Resolution

1920*1080(200W)

Illuminance

0.1Lux,Infrared night vision

CDS night version change

Change to black and white image automatically in the night

Viewing Angle

140 degree


Mirror or Non-mirror optional

Appearance and Application

Aluminum alloy material shell, outside hanging design; Suitable for bus, trucks and special vehicles

System

PAL/NTSC optional

Waterproof Level

IP68

Shockproof Level

4G

Power Requirements

DC 12V or 24V optional

Power Consumption

<3W

Maximum current

<250mA

Connector

4PIN or RCA optional

Working Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Size

86.5mm*77mm*75mm

Weight

300g

Accessories

Hexagon screws, hexagon wrench, sunshade, bracket, user manual
