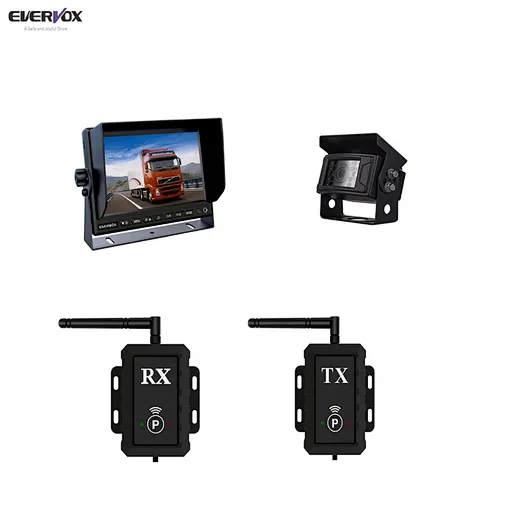

AHD 2.4 g wireless camera video audio transmitter & receiver for truck

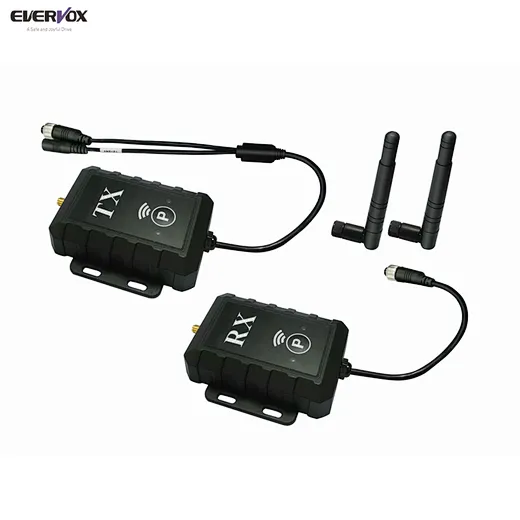

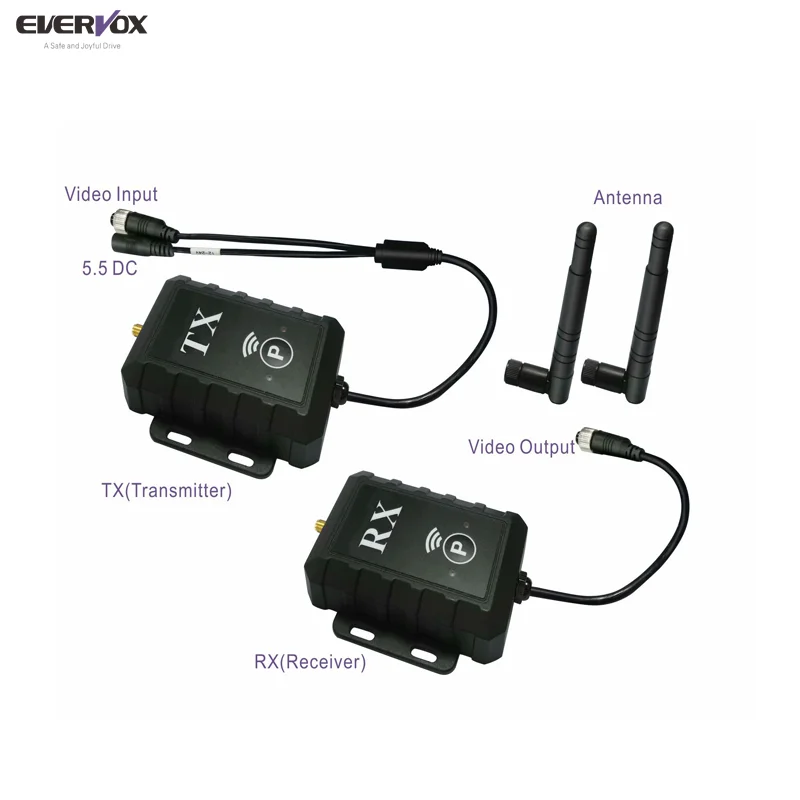

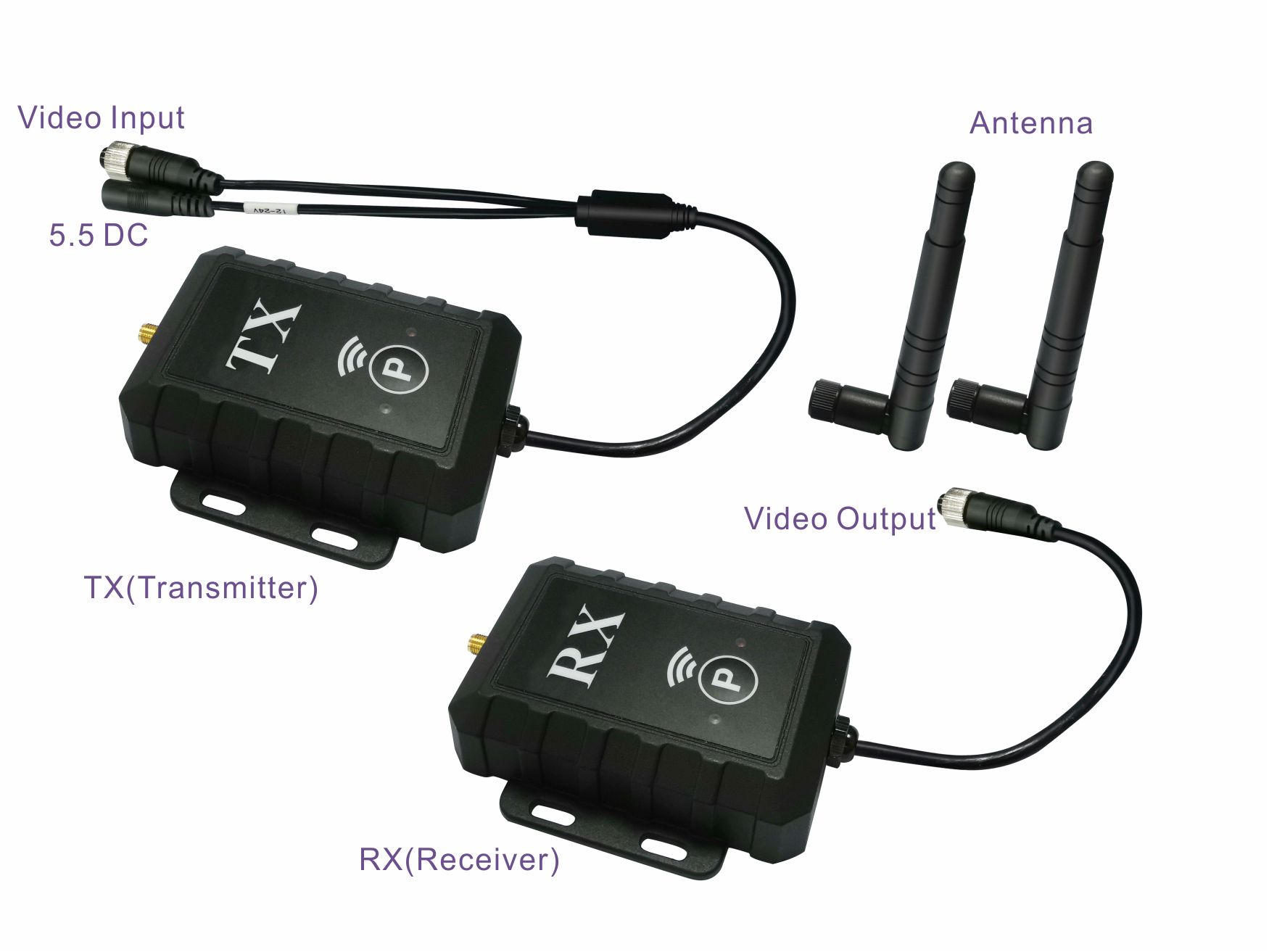

Universal HD Wireless Waterproof Transmitter and Receiver Kit
Main Features
1. Built-in 2.4GHz wireless transmitter and receiver module
2. TX/Transmitter support multiple video signle input (AHD/TVI/CVI/CVBS)
3. RX/Receiver support 720P video output
4. One button to pair automatically
5. 500M transmisstion distance in open area
6. Aluminium alloy housing
7. Waterproof rate: IP68
8. Vehicle Applications: Universal
| Model No. | EV-815D |

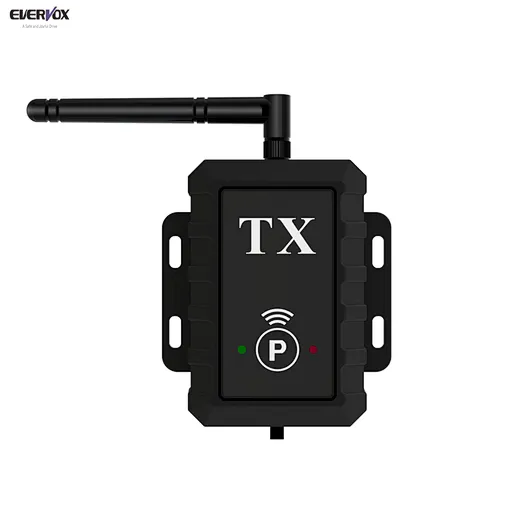

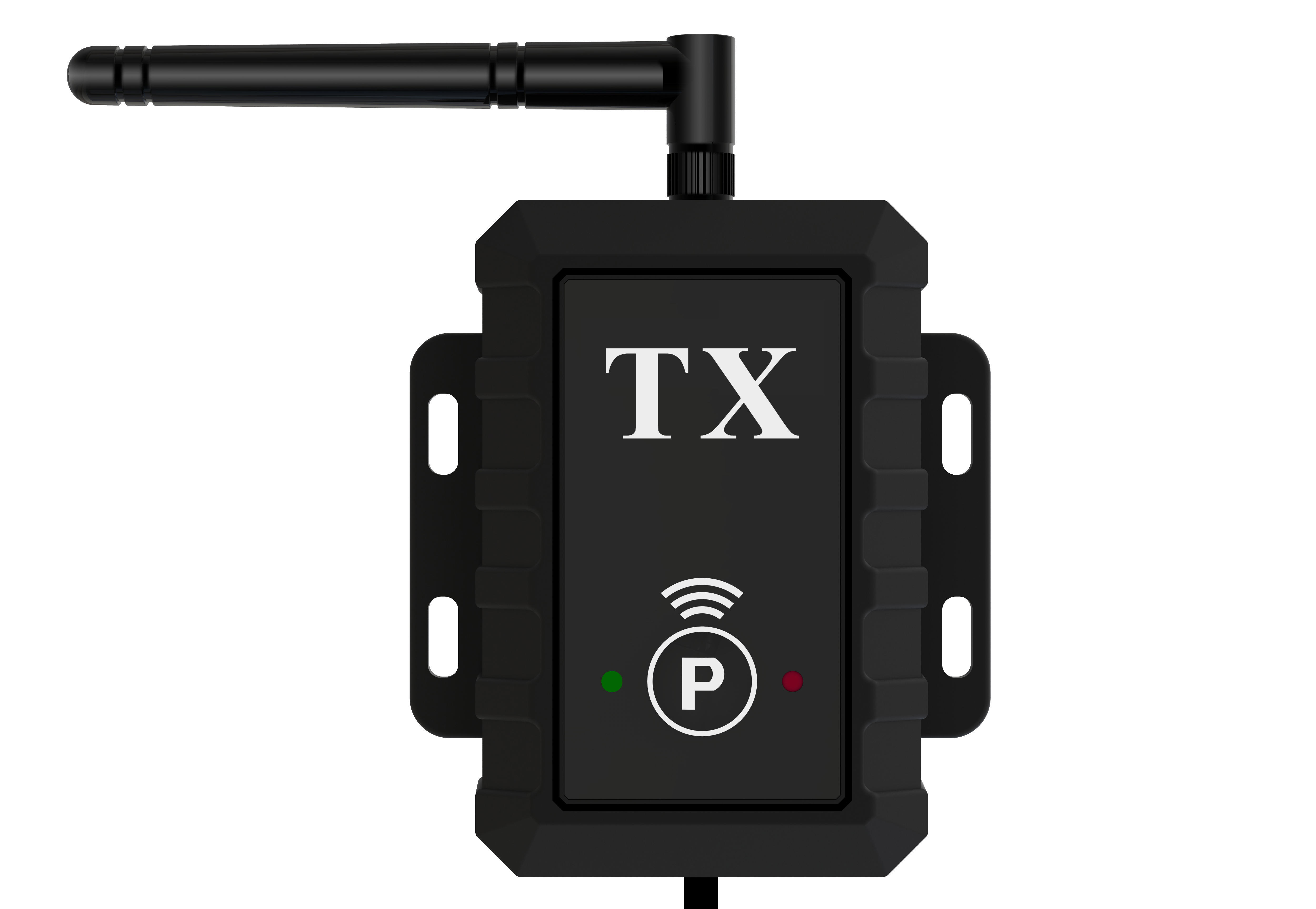

| Transmitter:EV-815TX | |

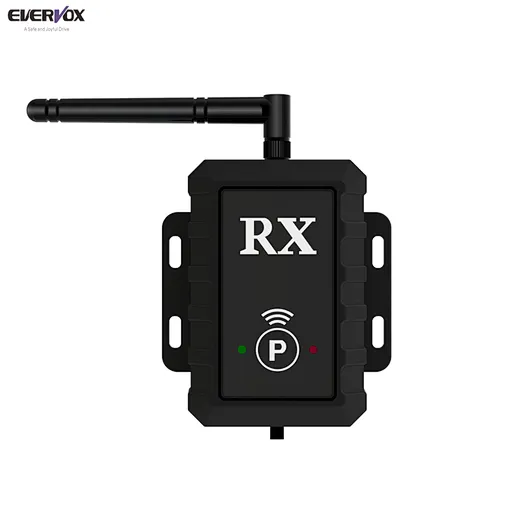

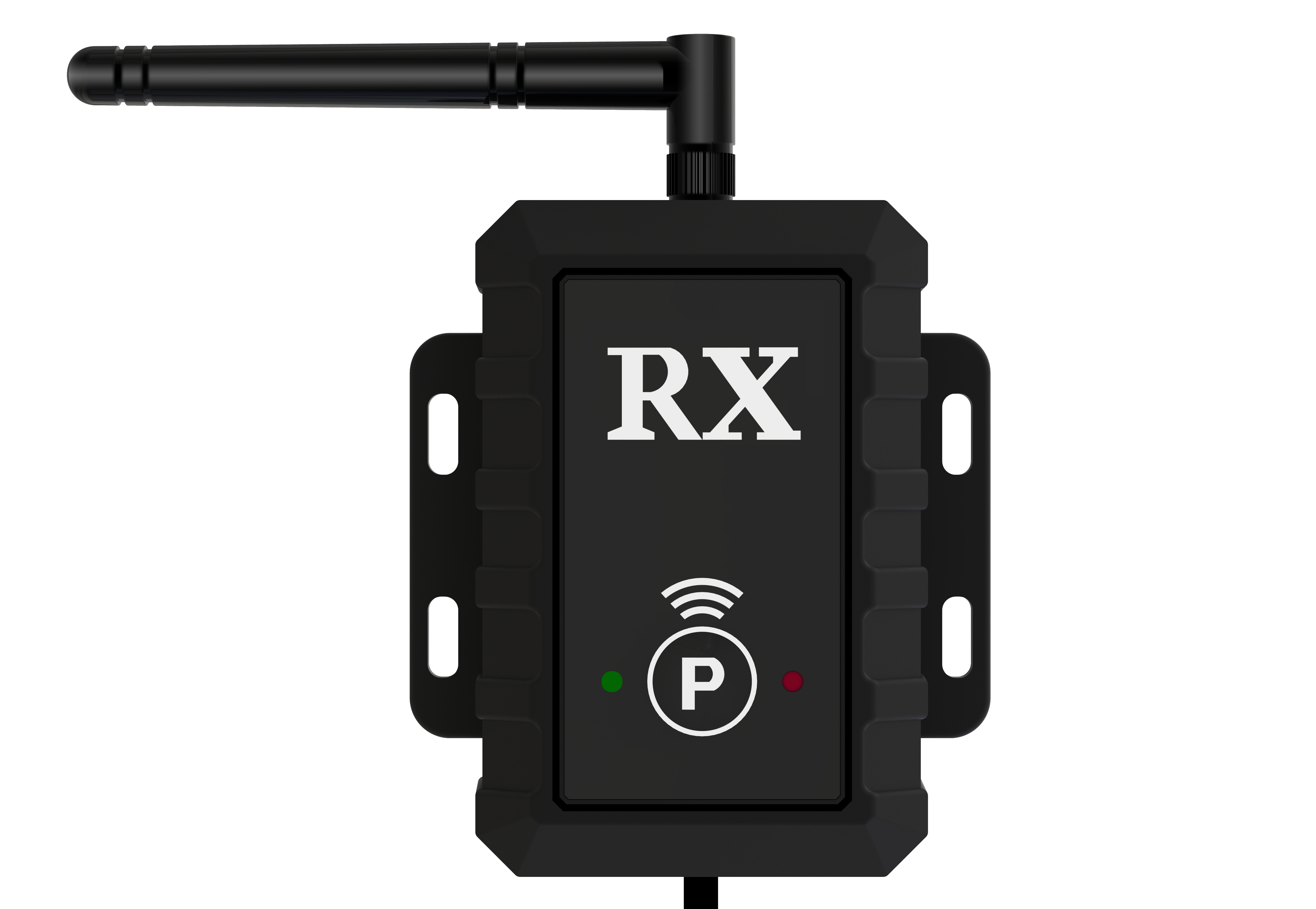

| Receiver:EV-815RX | |
| TX/Transmitter currents | 12V/200MA |
| RX/Receiver currents | 12/200MA |
| TX/Transmitter video input | AHD/TVI/CVI/CVBS (Automatically) |
| RX/Receiver output | AHD 720P/1280x720 |
| Audio | No/ Support one way (Optional) |
| System | PAL/NTSC(Automatically) |
| Wireless spectrum | 2.4GHz |
| Operating frequency range | 2400-2483.5MHZ |
| Receiver sensitivity | -89Dbm |
| Transmission Distance | 500M(unobstructed)/30M(obstructed) |
| Time of delay | About 90mS -120mS |
| Boot time | 2S |
| Transmission power | 12Mbps |
| Pairing | Automatically |
| Indication light | Red light on/off: Power on/ off Red light flashes: Pairing Green light on: connect successfully Green light off: signal lost |
| TX/Transmitter power supply | DC 12V-24V, DC 5.5 connector |
| TX/Transmitter power output | Support |
| RX/Receiver power supply | DC 12V-24V |
| Waterproof | IP68 |
| Vibration rating | 4G |
| Operating temperature | –20℃ ~ 70℃, RH95%MAX |
| Storage temperature | –30℃ ~ 85℃, RH95%MAX |

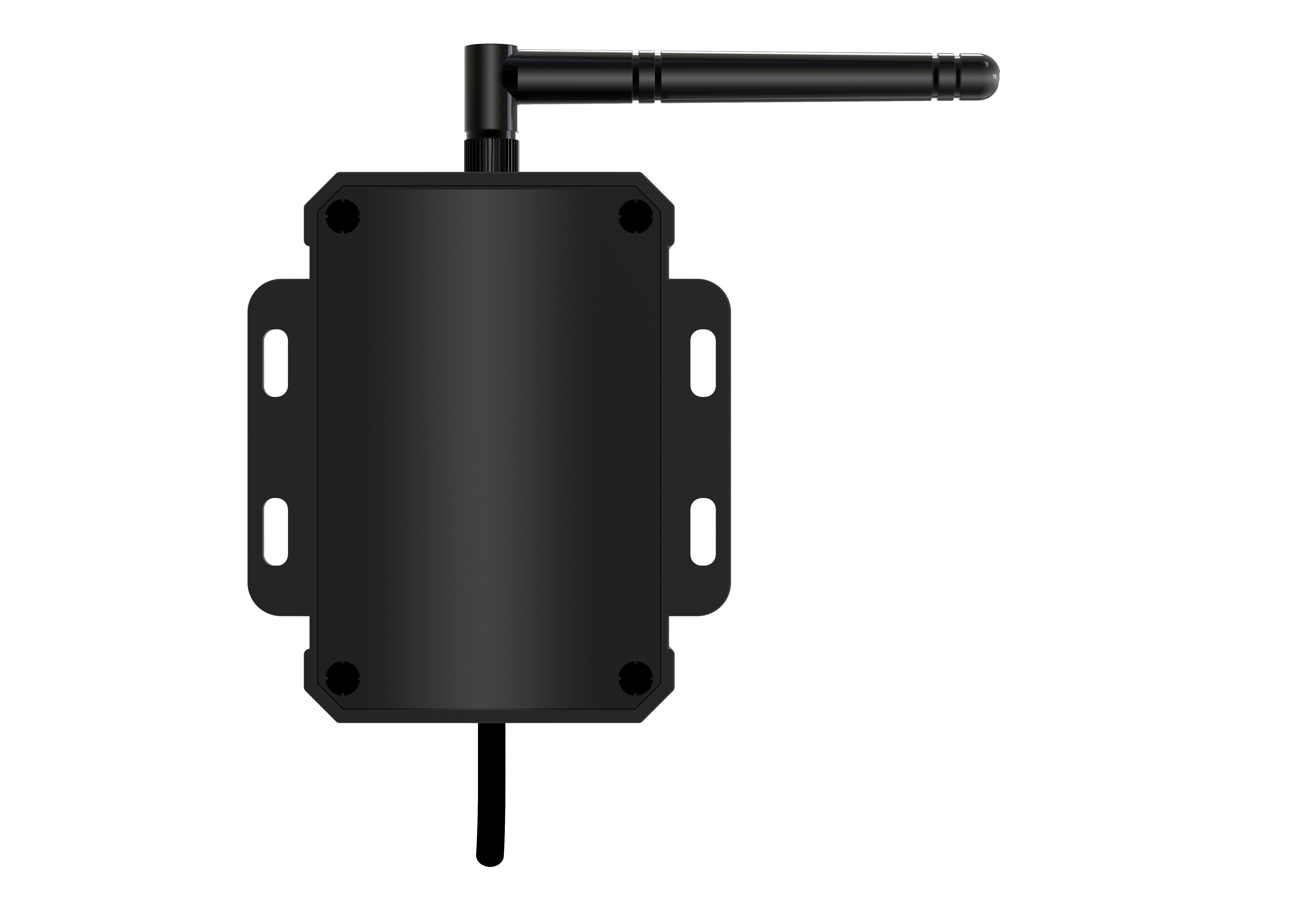

| Housing | Aluminium alloy, Black color, |
| Size | 98*86*25MM |

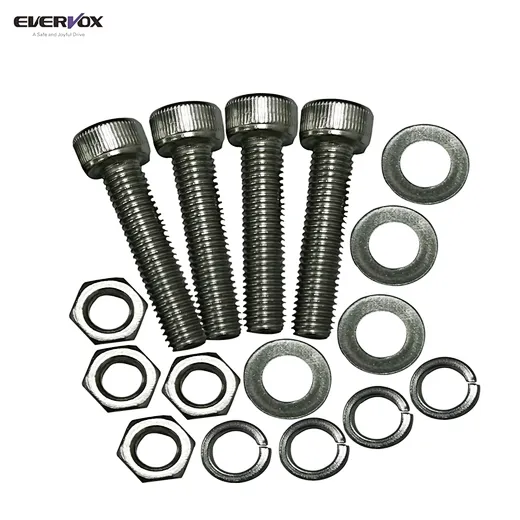

| Accesories | User manual, 5DB antenna, Installation screw, Power cable |
| Certificates | FCC-ID,CE,E-MARK |
