sharp ccd dual view car camera digital for parking car front view camera
sharp ccd dual view car camera digital for parking car front view camera
1. Super HD Camera: Backup Camera is 1/3"Sharp color CCD 600 TVL
2. Parking line selectable to be open or closed
3. Waterproof and weather resistant housing for outdoor use
4. Excellent night vision
5. Infrared LED light: 18
6. Mirror / Normal image switch
7. Power supply: 9V ~ 12V/ 24V
8. Backup Camera Eliminate Blind Spots and Outside on Farm Tractor、Heavy Equipment、Maritime Ship、Trucks、Fork-lifts 、Security Escort 、Airport Vehicle
| Item No. | EV-103C |
| Image device | 1/3"SHARP CCD COLOR |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:752×582 / NTSC: 768×494 |
| Resolution | 600 TV Lines |
| Lens | 3.6 mm / 2.8 mm |
| Viewing Angle | 120 degree / 140 degree |
| Video Output | 1.0Vp-p75Ω |
| Minimum Illumination | 0 .05Lux |
| Signal to noise ratio | Better than 45dB |
| White balance | Auto |
| Waterproof Level | IP69K |
| Shockproof | 4G |
| Power Supply | 9V-16V/24V |
| Mirror or Non-mirror | Switchable |
| Parking Line | Selectable to be open or closed |
| Appearance | luminum alloy material shell, outside hanging design |

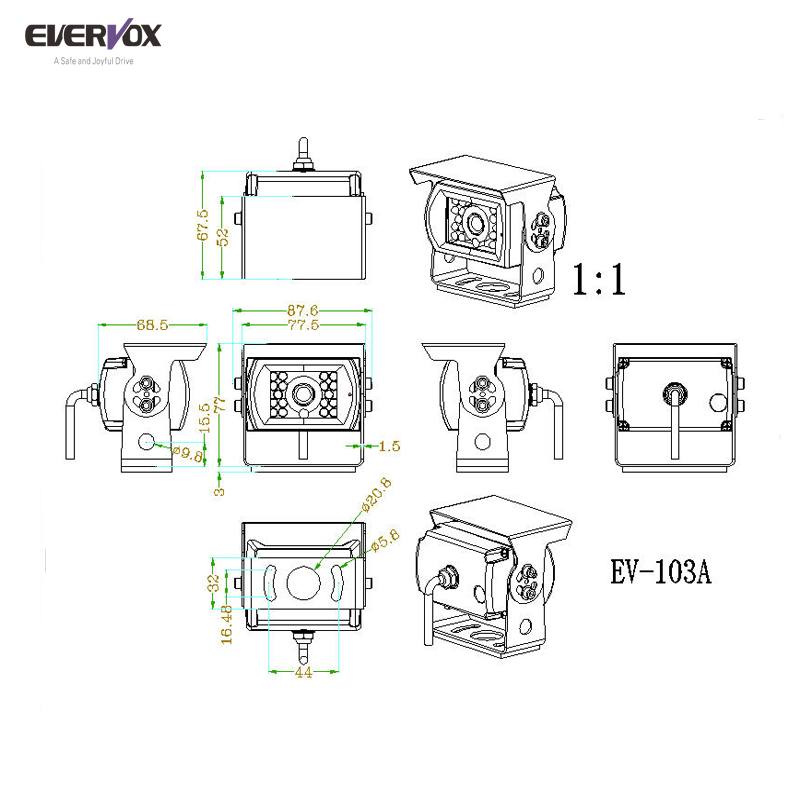

| Size | 77.5*67.5*77mm |
