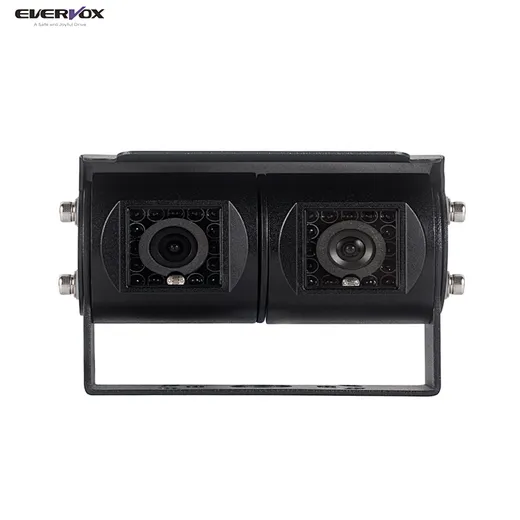

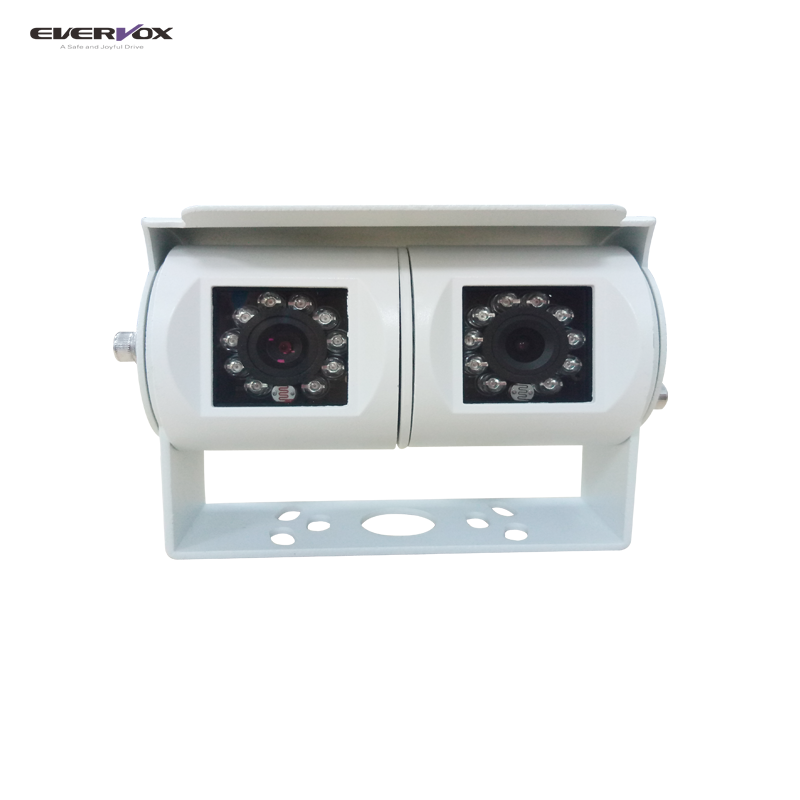

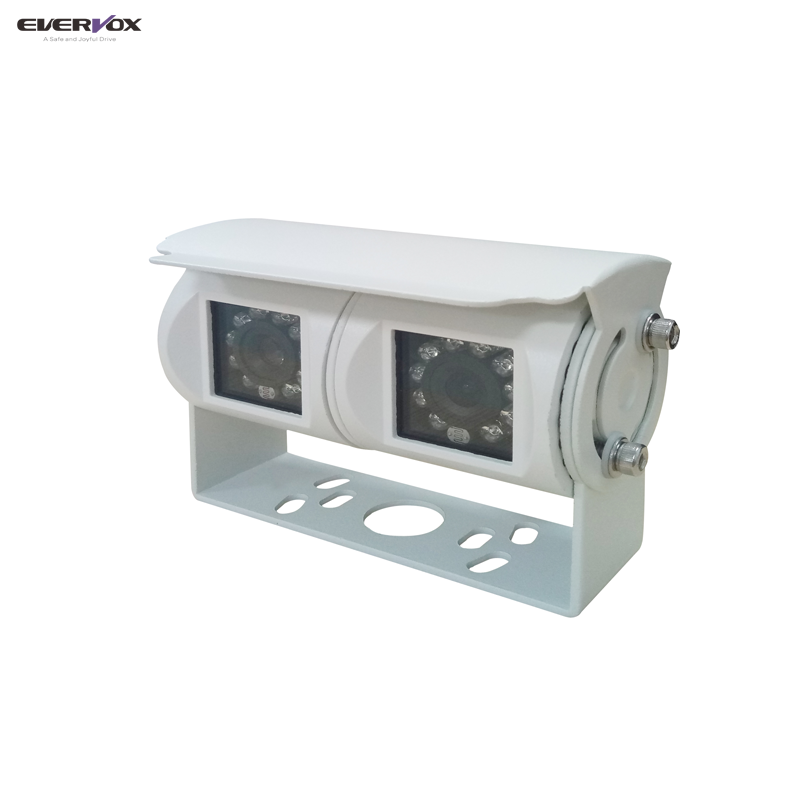

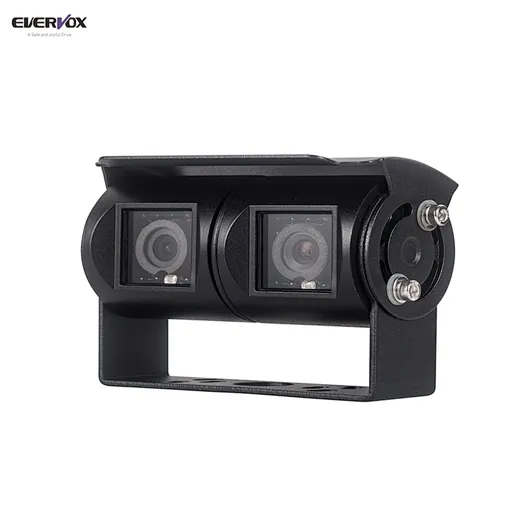

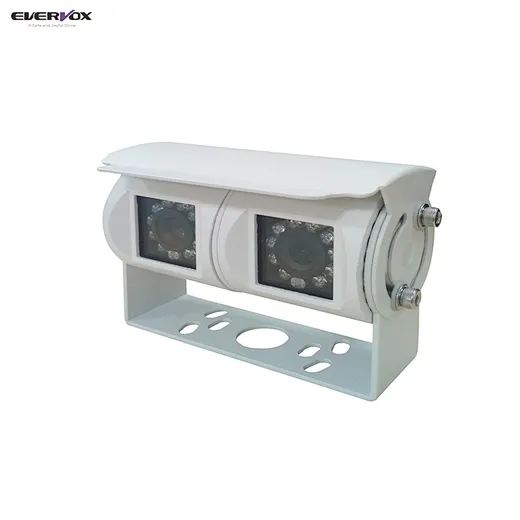

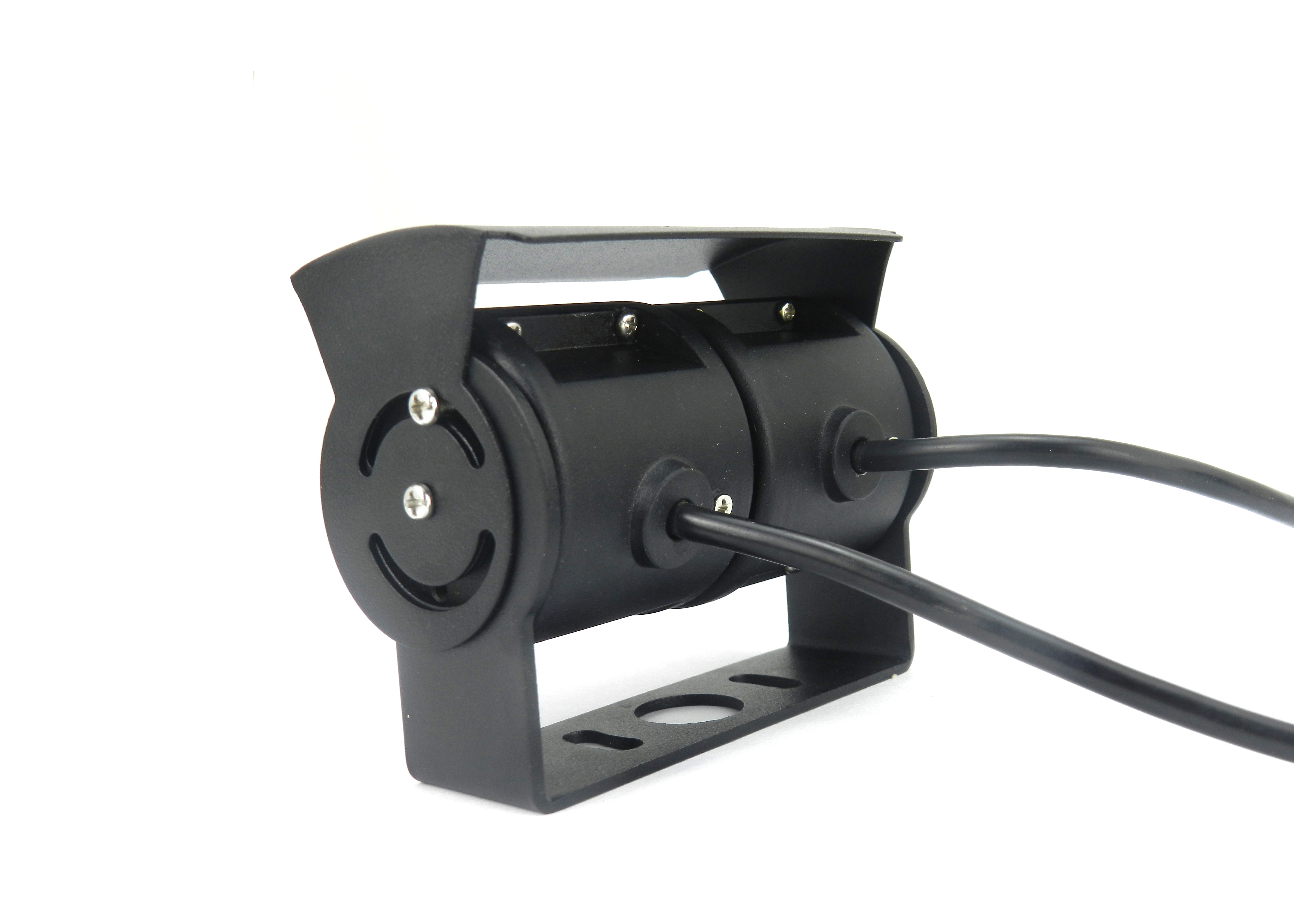

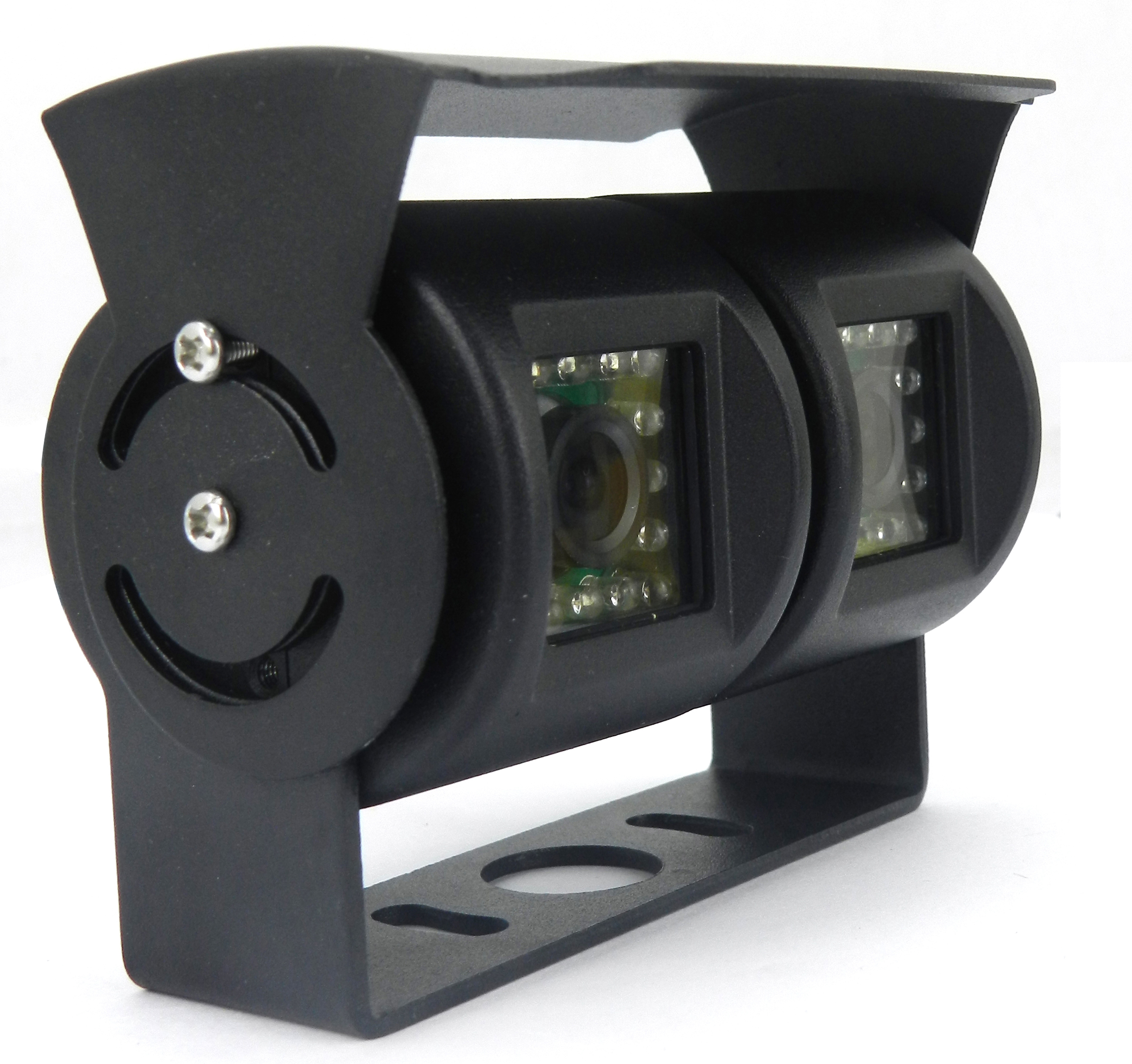

Camera Car reversing sony ccd dual lens camera special for bus/track/ forklift
1. Dual cameras: one for rear viewing and the other for horizontal viewing
2. Super HD Camera: Backup Camera is 1/3"Sharp color CCD 600 TVL
3. Parking line selectable to be open or closed
4. Waterproof and weather resistant housing for outdoor use
5. Excellent night vision
6. Mirror / Normal image switch
7. Power supply: 9V ~ 12V/ 24V
8. Backup Camera Eliminate Blind Spots and Outside on Farm Tractor、Heavy Equipment、Maritime Ship、Trucks、Fork-lifts 、Security Escort 、Airport Vehicle
| Item No. | EV-124HD |
| Image device | 1/3"SONY CCD |
| TV System | PAL/NTSC |
| Effective Pixels | PAL:752×582 / NTSC: 768×494 |
| Resolution | 600 TV Lines |
| Lens | 2.8 mm & 3.6 mm |
| Viewing Angle | 140 degree & 120 degree |
| Video Output | 1.0Vp-p75Ω |
| Minimum Illumination | 0 .05Lux |
| Signal to noise ratio | Better than 45dB |
| White balance | Auto |
| Microphone | Option |
| Waterproof Level | IP69K |
| Shockproof | 4G |
| Power Supply | 9V-16V/24V |
| Mirror or Non-mirror | Switchable |
| Parking Line | Selectable to be open or closed |
| Appearance | luminum alloy material shell, outside hanging design |
| Size | 96 * 28 * 82 mm |

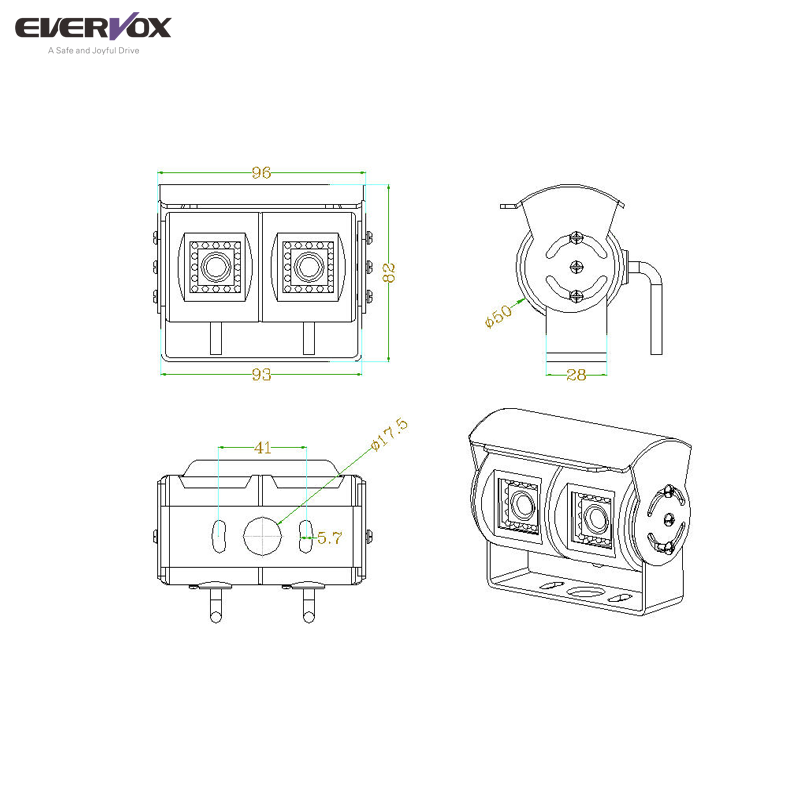

Outline dimension drawing
